How to Train Claude for Electrical Engineering Workflows

AI is changing how engineers analyse problems, review calculations and interpret simulation results. Tools such as Claude AI can now support electrical engineering workflows involving circuit analysis, signal processing, troubleshooting and technical decision-making.

However, Claude remains a general-purpose language model. It does not automatically understand circuit constraints, component tolerances, signal behaviour or system limitations. Incomplete instructions can therefore produce answers that sound technical but contain incorrect assumptions.

So, can you train Claude AI to work like an electrical engineering assistant? Not through a single prompt. You need a structured workflow that provides domain context, engineering rules, defined inputs and reliable validation methods.

This guide explains how to train Claude AI for electrical engineering workflows step by step. It covers context engineering, tool integration, multi-agent setups and practical methods for validating every output.

Quick Answer: Training Claude AI for electrical engineering means configuring a structured workflow with engineering context, constraints, specialist tools and mandatory validation.

Here is the crux of using Claude AI for electrical engineering workflows:

• Define Complete Inputs: Provide component values, units, tolerances, operating conditions and assumptions.
• Supply Engineering Context: Include relevant equations, standards, circuit rules and system limitations.
• Break Down Complex Tasks: Separate planning, calculation, simulation and verification into controlled stages.
• Integrate Specialist Tools: Use Claude alongside Python, SPICE simulators, MATLAB or circuit-design software.
• Validate Every Output: Confirm calculations and designs through trusted tools and qualified engineering review.

Why Claude Needs Training for Electrical Engineering

1. Limited Awareness of the Actual System

Claude only knows the information included in the prompt or connected files. It cannot automatically identify missing circuit values, wiring details or operating conditions.

For example, a circuit-analysis prompt may omit:

• Source frequency and waveform
• RMS or peak voltage
• Component tolerances
• Initial conditions
• Load characteristics
• Temperature limits
• Reference-ground location

Claude may fill these gaps with assumptions. Those assumptions can change the final result significantly.

2. Incorrect Selection of Engineering Equations

A formula can be mathematically correct but unsuitable for the given system.

Claude may apply Ohm’s law correctly while overlooking:

• Reactive impedance in an AC circuit
• Diode forward-voltage behaviour
• Transistor operating regions
• Magnetic saturation
• Frequency-dependent component behaviour
• Nonlinear loads

The prompt should therefore specify the analysis method and relevant physical conditions.

3. Unit and Scale Errors

Electrical calculations often involve values ranging from microamperes to kiloamperes. A small prefix mistake can create a large numerical error.

For example:

• 10 µF is not 10 mF
• 5 mA is not 5 A
• 230 V RMS is not 230 V peak
• 1 MHz is not 1 kHz

Every workflow should require Claude to show units during intermediate calculations and confirm the final unit.

4. Oversimplified Signal and System Behaviour

Real systems rarely behave like ideal textbook circuits. Noise, delay, parasitic effects and component variation can influence performance.

Claude may overlook:

• Sampling and aliasing limits
• Phase margin and gain margin
• Harmonic distortion
• Electromagnetic interference
• Quantisation error
• Transient behaviour
• Sensor noise

These effects must be included when they are relevant to the problem.

5. Confident but Incorrect Conclusions

Claude can present an incorrect result in clear and convincing language. A polished explanation does not prove that the underlying calculation is valid.

This becomes risky when analysing:

• Protection circuits
• High-voltage systems
• Battery-management systems
• Motor-control systems
• Power converters
• Fault conditions

Engineers should treat Claude’s responses as working drafts rather than approved designs.

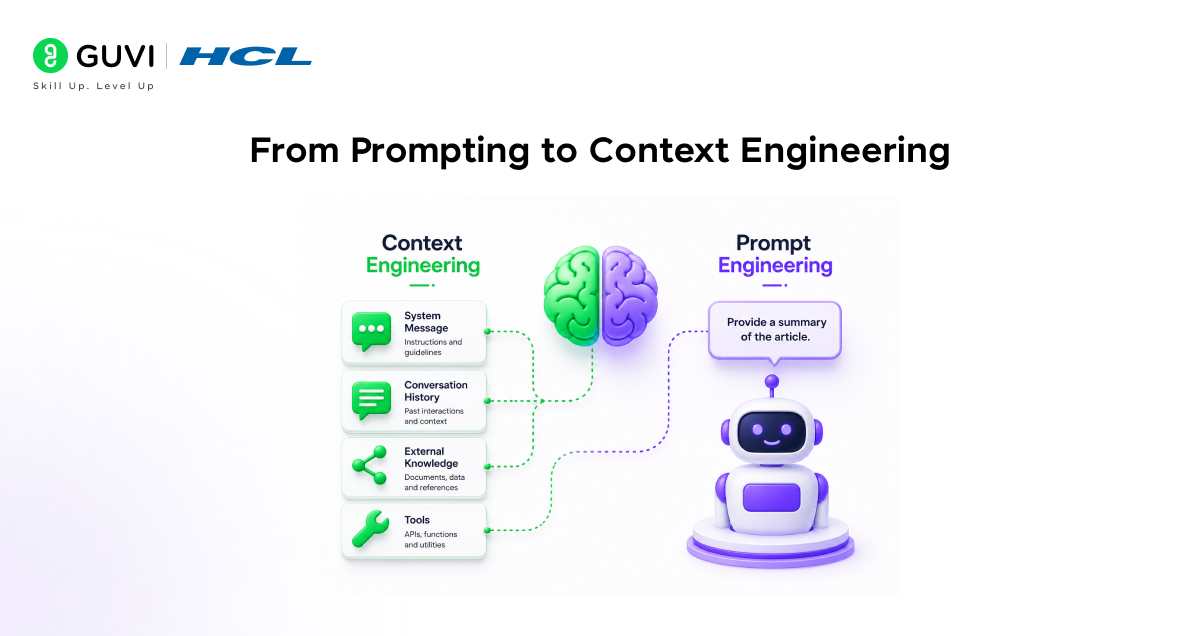

From Prompting to Context Engineering

Initially, many users are interested in what a single prompt is, how to use a single prompt for any complex query, and get precise results. Single prompts work well for trivial questions; however, in electrical engineering, most problems require step-by-step calculations and stringent rules.

A single prompt doesn’t give adequate instruction to Claude AI for an accurate answer.

Why Single Prompts Fail

Most electrical engineering problems can’t be expressed as a single prompt. For a circuit analysis task, you are not just asking for a value, but you should specify the components, laws to be used, methods to solve the equation, and verification of the calculation.

A single prompt fails at each step or combines them improperly, without indicating hidden mistakes or omissions in the reasoning.

What is Context Engineering

The process of providing detailed and relevant context that guides Claude’s thinking is called context engineering. Here, you are not just questioning a model like Claude AI; instead, you are setting up a problem context, constraints, and defining specific logic and processes to follow for generating a precise response.

It can involve adding details about a system, required output format, providing formulas, or even defining the desired method of reasoning, aiming to minimize ambiguity in Claude’s responses.

If you want to explore AI systems, engineering workflows, and agent-based tools in more depth, you can check out this Generative AI ebook to better understand how models like Claude AI are applied in real-world engineering scenarios.

Where Claude Fits in Electrical Engineering Workflows

Claude does not replace existing tools, it is meant to be part of a reasoned workflow that structures the problem and guides decision-making.

In electrical engineering workflows, it is essential to use tools such as simulation software, calculation tools, or design tools. Claude complements this by translating input, creating a plan, and translating the result into an understandable form.

As an example, an engineer states the problem, asks Claude to break it down into multiple steps, performs the calculation using a simulation tool, and again asks Claude to interpret the result. Claude’s role becomes even more powerful when combined with features like auto mode that reduce manual intervention in iterative workflows.

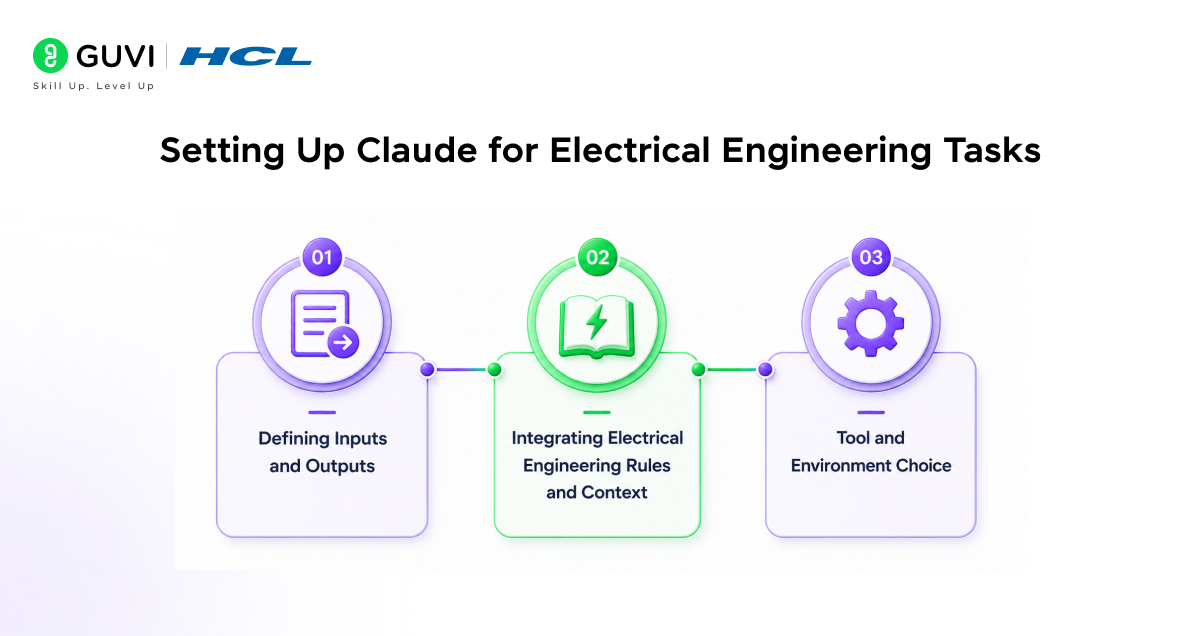

Setting Up Claude for Electrical Engineering Tasks

Claude AI needs a structured working environment to support electrical engineering tasks consistently. The setup should define exactly what data Claude receives, which engineering rules it must apply, what external tools will perform calculations and how the final output will be validated.

If you are building this workflow in practice, learning how to use Claude Code step-by-step can help you organise project files, scripts, simulations and validation checks.

1. Define the Engineering Inputs and Required Outputs

Begin by providing every value Claude needs to understand the system. The exact inputs will depend on the engineering task:

• Circuit Analysis: Supply voltage, resistance, capacitance, inductance and circuit topology
• AC Analysis: Frequency, phase angle, RMS values and impedance
• Signal Processing: Sampling rate, signal duration, bandwidth and noise level
• Power Systems: Load demand, power factor, line voltage and transformer ratings
• Control Systems: Transfer function, feedback configuration, damping ratio and stability requirements
• Embedded Systems: Microcontroller model, clock frequency, pin configuration and communication protocol

Define the expected output just as clearly. Ask for specific results such as branch current, node voltage, power dissipation, cutoff frequency, gain, phase margin or transient response.

For example:

Analyse a series RC circuit with a 1 kΩ resistor, a 10 µF capacitor and a 5 V step input. Calculate the time constant and capacitor voltage after 20 ms. Show the equation, substituted values, result and units.

This format prevents Claude from selecting unstated values or solving a different version of the problem.

2. Add Electrical Engineering Rules and Operating Constraints

Tell Claude which formulas, laws and assumptions it must use. Do not rely on the model to select every engineering rule independently.

The context may specify:

• Applicable Laws: Ohm’s law, Kirchhoff’s laws or Faraday’s law
• Analysis Method: Nodal, mesh, transient or frequency-domain analysis
• Component Model: Ideal or non-ideal components
• Operating Limits: Maximum voltage, current, temperature and power
• Component Tolerances: Minimum, nominal and maximum values
• Safety Margin: Required derating for voltage, current or power
• Reference Standards: Relevant IEC, IEEE or manufacturer requirements
• Required Assumptions: Steady-state operation, room temperature or negligible parasitic effects

For example, when selecting a resistor for an LED circuit, specify the supply voltage, LED forward-voltage range, target current, resistor tolerance and maximum permitted power utilisation. Ask Claude to calculate the resistor under both nominal and worst-case conditions.

Providing these constraints helps prevent a theoretically correct answer from becoming an unsafe or impractical design recommendation.

3. Select Tools for Calculation, Simulation and Verification

Claude should organise the workflow and support interpretation. Dedicated engineering tools should execute simulations, perform numerical calculations and confirm design behaviour.

Choose tools according to the task:

• LTspice, PSpice or Multisim: Analog and mixed-signal circuit simulation
• MATLAB or Simulink: Signal processing, control systems and system modelling
• Python with NumPy and SciPy: Numerical calculations, parameter sweeps and data analysis
• KiCad or Altium Designer: Schematic capture and PCB development
• Oscilloscope or Multimeter: Physical voltage, current and waveform verification
• Git: Version control for scripts, netlists and technical documentation

A practical workflow could involve asking Claude to create a SPICE netlist, running that file in LTspice and returning the simulation measurements to Claude for comparison with the analytical calculation.

Claude should then identify mismatches between the calculated and simulated values. The engineer must review the final result before using it in hardware.

For quick testing away from a desktop environment, Claude Code can also be used directly on your phone. However, mobile access does not replace specialist simulation software, laboratory measurements or professional design approval.

Step-by-Step: Training Claude for Engineering Workflows

Training Claude AI for electrical engineering workflows is less about prompts and more about a structured step-by-step process. This way, it makes more logical decisions and produces more accurate responses.

You can further improve accuracy by integrating structured review layers similar to how code review works inside Claude Code environments.

1. Define the Problem

Describe the electrical engineering task with complete technical details. Specify the circuit type, topology, component values, supply conditions, frequency, known variables and required output. Also state whether the task involves DC analysis, AC analysis, transient response, signal processing or system stability.

For example, instead of asking, “Calculate the current in this circuit,” ask Claude to “Calculate the current through a 220 Ω resistor connected to a 12 V DC source using Ohm’s law. Include the voltage drop, power dissipation and recommended resistor wattage.”

Claude should identify missing information before beginning the calculation rather than assuming unspecified values.

2. Provide Engineering Constraints

Define the physical laws, operating limits and design requirements Claude must follow. These may include Kirchhoff’s laws, component tolerances, maximum voltage and current ratings, operating temperature, acceptable ripple, frequency range and required safety margin.

For example, specify that an LED driver must operate from a 12 V supply, deliver 20 mA and keep the resistor below 70% of its rated power. If relevant, include datasheets and applicable IEC, IEEE or manufacturer requirements.

Clear constraints prevent Claude from suggesting a mathematically possible solution that is electrically unsafe or impractical.

3. Validate the Output

Check Claude’s calculations using independent equations, simulation software and physical measurements. Confirm numerical accuracy, units, assumptions, component ratings and compliance with the original constraints.

For circuit analysis, compare the output with LTspice, PSpice or Multisim. For control and signal-processing tasks, use MATLAB, Simulink or Python. For a physical prototype, verify voltage, current and waveforms with a multimeter or oscilloscope.

If Claude calculates a resistor power dissipation of 0.72 W, confirm the value manually and select a component with a suitable safety margin, such as a 1 W or higher-rated resistor. Any discrepancy between Claude’s answer and the verified result should trigger a recalculation before implementation.

Claude AI Prompt Template for Electrical Engineering Tasks

A reusable electrical engineering prompt template helps Claude produce more consistent and verifiable results. Each prompt should define the role, system details, engineering method, operating constraints, required output and validation process:

• Task: State whether Claude must analyse a circuit, debug a fault, interpret a signal or prepare a simulation.
• Input Parameters: Provide component values, supply conditions, frequency, tolerances and known measurements.
• Engineering Method: Specify the laws, equations or analytical method Claude must use.
• Operating Constraints: Include voltage, current, power, thermal and safety limits.
• Output Format: Request equations, substituted values, units, assumptions and a concise conclusion.
• Validation Method: Ask Claude to perform unit checks and compare the result with stated component ratings.

Reusable Claude AI Electrical Engineering Prompt

Act as an electrical engineering analysis assistant. Analyse the following [circuit/system type].

Inputs: [list all component values, operating conditions and measured values].

Required result: [state exactly what must be calculated or diagnosed].

Apply: [specify Ohm’s law, Kirchhoff’s laws, nodal analysis, mesh analysis or another method].

Constraints: [provide voltage, current, power, frequency, temperature and tolerance limits].

Present the known values, equations, substitutions, calculated results and units. Identify missing information instead of assuming values. Check dimensional consistency and compare the result with the stated operating limits. Conclude whether the proposed design meets the requirements. Treat the answer as a draft requiring independent simulation and engineering review.

Example Prompt for Circuit Analysis

Analyse a series LED circuit powered by a 12 V DC supply. The LED forward voltage ranges from 2.8 V to 3.2 V, and the target current is 20 mA. Calculate the required resistor for both forward-voltage limits using Ohm’s law. Then calculate maximum resistor power dissipation and recommend a suitable standard resistance and wattage rating with an appropriate safety margin. Show every equation, substituted value and unit. Do not assume any missing parameter.

Claude should return a resistor value range and explain how the LED’s forward-voltage variation affects current. An engineer should then verify the selected resistor against the LED datasheet, resistor tolerance and maximum supply-voltage conditions.

Example Prompt for Electrical Fault Diagnosis

A 5 V regulated power supply produces 4.1 V under a 500 mA load but returns to 5 V without the load. Create a ranked list of possible causes. Consider regulator current limits, input-voltage dropout, excessive resistance, thermal protection and faulty capacitors. For each cause, specify the measurement required to confirm or reject it. Do not recommend replacing components before defining a safe test procedure.

This format directs Claude to create a measurable troubleshooting plan instead of guessing which component has failed. It also keeps the final diagnosis tied to real voltage, current and temperature measurements.

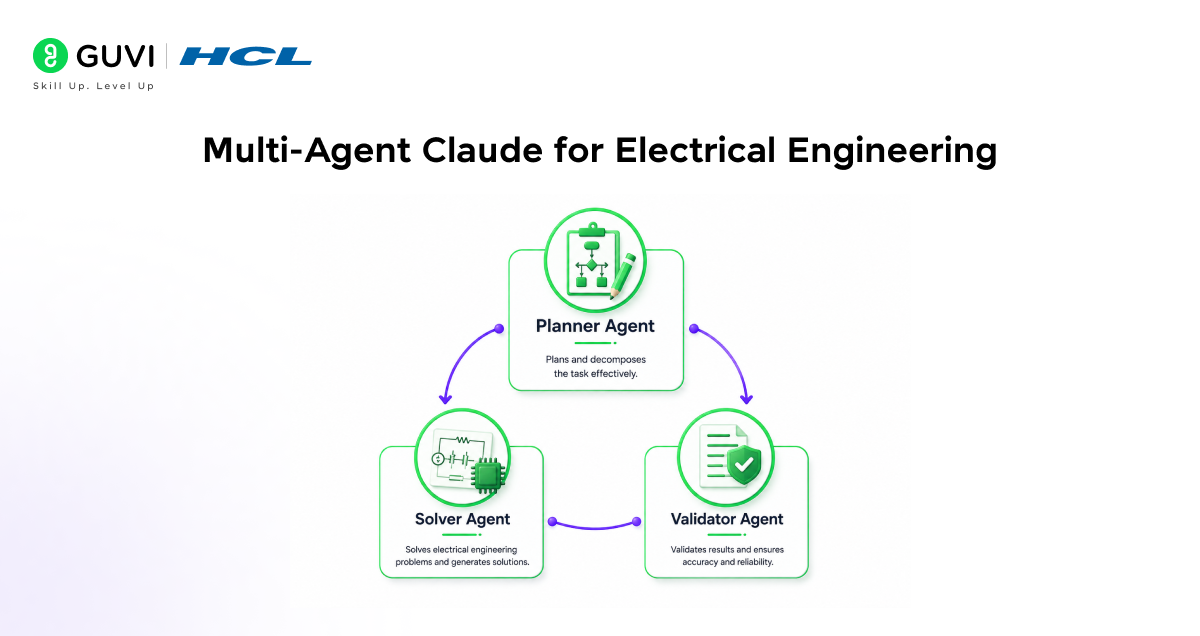

Multi-Agent Claude for Electrical Engineering

The most effective approach to dealing with complicated electrical engineering problems with Claude is to use a multi-agent method rather than a single one. Different agents are given specific responsibilities that increase accuracy and improve the structure of the task. This multi-agent approach is often implemented using MCP-based architectures that coordinate multiple reasoning layers.

1. Planner Agent: Define the Engineering Problem

The Planner Agent converts the initial electrical engineering problem into a structured analysis plan. It identifies:

• Known Parameters: Voltage, current, resistance, frequency, component ratings and operating conditions
• Required Outputs: Branch current, voltage drop, power loss, gain, impedance or stability margin
• Applicable Principles: Ohm’s law, Kirchhoff’s laws, nodal analysis, mesh analysis or frequency-response analysis
• Missing Information: Unspecified tolerances, reference nodes, load conditions or component characteristics
• Solution Sequence: The correct order for simplifying the circuit and calculating each unknown

For example, when analysing a three-loop circuit, the Planner Agent can label every branch, select mesh-current analysis, define current directions and prepare the equations. It should not calculate the final values at this stage.

2. Solver Agent: Perform Calculations and Simulations

The Solver Agent follows the approved plan and completes the technical analysis. Its responsibilities include:

• Substituting Values: Insert the supplied component values into the selected equations
• Solving Equations: Calculate currents, voltages, impedance, power or other required quantities
• Tracking Units: Maintain consistent SI units throughout every calculation
• Generating Technical Files: Prepare Python scripts, MATLAB code or SPICE netlists when required
• Formatting Results: Present equations, substituted values and final answers in a reviewable format

For example, the Solver Agent can solve the mesh equations prepared by the Planner Agent and calculate the current through each loop. It can then determine individual voltage drops and component power dissipation.

3. Validator Agent: Independently Verify the Results

The Validator Agent checks the proposed solution before an engineer uses it. It should evaluate:

• Equation Accuracy: Confirm that the selected formulas and circuit laws were applied correctly.
• Numerical Accuracy: Recalculate important values independently and check rounding.
• Unit Consistency: Verify that every input and result uses compatible units.
• Physical Plausibility: Check whether the calculated voltage, current or power is realistic.
• Component Ratings: Compare results with voltage, current, thermal and power limits.
• Simulation Agreement: Compare analytical results with LTspice, MATLAB, Simulink or another suitable tool.
• Boundary Conditions: Test the system under minimum, nominal and maximum operating values.

For example, the Validator Agent can apply Kirchhoff’s Voltage Law to each loop and confirm that the calculated voltage drops equal the supply voltage. If the analytical current is 54.5 mA but the simulation returns 81 mA, it should flag the mismatch instead of approving the result.

The Validator Agent should return one of three clear outcomes: validated, revision required or insufficient information. Any safety-critical result must still receive final approval from a qualified electrical engineer.

Real-World Electrical Engineering Applications

• Circuit Analysis: Claude can organise component values, apply Ohm’s law and formulate equations using Kirchhoff’s Current Law or Kirchhoff’s Voltage Law. For example, it can calculate branch currents, voltage drops, equivalent resistance and power dissipation. Engineers should verify the results manually or with tools such as LTspice, PSpice or Multisim.
• Signal Processing: Claude can help explain sampling, filtering, convolution, Fourier transforms and frequency-domain behaviour. It can also generate Python or MATLAB code for plotting signals, designing basic filters or comparing time-domain and frequency-domain results. The final output should be checked against reference calculations and simulation results.
• Power-System Analysis: Claude can structure calculations for load flow, power factor correction, voltage regulation, transmission losses and fault studies. For example, it can help calculate the capacitor rating required to improve power factor from 0.75 to 0.95. Engineers must validate these calculations using approved power-system software and relevant standards.
• Control-System Evaluation: Claude can assist with transfer functions, block-diagram reduction, steady-state error and stability analysis. It can also help interpret Bode plots, root-locus diagrams and step responses generated through MATLAB or Simulink. The model should receive the complete system parameters and stability criteria before analysis.
• Embedded-System Development: Claude can draft C or C++ code for microcontrollers, explain peripheral configuration and organise logic for sensors, timers, ADCs, PWM and communication protocols. Generated firmware must be tested on the target hardware because timing, memory and device-specific behaviour may differ from the proposed implementation.
• PCB Design Review: Claude can review supplied design rules or schematic descriptions for possible issues involving grounding, trace width, decoupling, component placement and signal integrity. It cannot independently certify a PCB design. Engineers should confirm every recommendation using component datasheets and electronic design automation tools.
• Debugging and Fault Detection: Claude can compare expected and measured voltage, current, waveform or resistance values to identify possible failure points. For instance, an unexpected output ripple may indicate inadequate filtering, incorrect grounding or a failing capacitor. These suggestions should guide testing rather than replace measurements with an oscilloscope, multimeter or logic analyser.
• Simulation and Test Preparation: Claude can generate SPICE netlists, MATLAB scripts, Python calculations and structured test cases from engineering requirements. It can also define nominal, minimum and maximum test conditions. Engineers should run the generated files in the appropriate software and review errors before relying on the results.
• Technical Documentation: Claude can convert verified calculations and test results into design notes, troubleshooting guides, bill-of-material summaries and test reports. Engineers should review the final document to confirm that component values, units, revision numbers and safety instructions remain accurate.

For building actual tools or prototypes without deep coding, Claude artifacts can also be used effectively.

Best Practices for Using Claude AI in Electrical Engineering

1. Define Every Electrical Parameter Clearly

Provide Claude with complete numerical inputs instead of expecting it to infer missing values. Include:

• Circuit values: Voltage, current, resistance, capacitance and inductance
• Operating conditions: AC or DC, frequency, phase and duty cycle
• Component limits: Power rating, voltage tolerance and temperature range
• Required output: Current, voltage drop, gain, impedance or power loss
• Assumptions: Ideal components, steady-state operation or room temperature

For example, replace “calculate the current in this circuit” with:

Calculate the current through a 220 Ω resistor connected to a 12 V DC supply. Show the formula, substitute the values, include units and verify the resistor’s minimum power rating.

2. Specify the Engineering Method

Tell Claude which principle, equation or analysis method it must apply. This reduces ambiguity and makes the answer easier to verify.

Depending on the task, specify:

• Ohm’s law for voltage, current and resistance calculations
• Kirchhoff’s Current Law for node analysis
• Kirchhoff’s Voltage Law for loop analysis
• Thevenin or Norton equivalents for circuit simplification
• Fourier or Laplace transforms for signal and system analysis
• Root-locus, Bode plots or Nyquist criteria for control-system stability

Ask Claude to present the known values, equations, substitutions, calculated results and units. This creates an auditable solution without relying on an unexplained final answer.

3. Require Unit and Range Checks

Every numerical result should include the correct unit and a reasonableness check. Ask Claude to verify:

• Dimensional consistency: Confirm that units remain valid throughout the calculation.
• Magnitude: Check whether the result is physically realistic.
• Component limits: Compare calculated values with maximum ratings.
• Boundary conditions: Test minimum, nominal and maximum operating values.
• Safety margins: Account for tolerances, transients and thermal effects.

For instance, a calculated resistor value is incomplete without checking its power dissipation. If the resistor dissipates 0.72 W, a 0.25 W component would be unsuitable even if the resistance value is correct.

4. Validate Results With Engineering Software

Claude should help prepare, explain or review an analysis—not serve as the final computational authority. Verify important outputs using appropriate tools:

• LTspice, PSpice or Multisim: Circuit simulation
• MATLAB or Simulink: Signal processing and control systems
• Python with NumPy and SciPy: Numerical analysis
• KiCad or Altium Designer: Schematic and PCB review
• Oscilloscopes and multimeters: Physical measurement and testing

A practical workflow is to ask Claude to formulate the equations or generate a simulation setup, run it in the relevant engineering tool and then provide the verified results to Claude for interpretation.

5. Provide Datasheets and Design Standards

When selecting or comparing components, provide the relevant manufacturer datasheet. Ask Claude to extract and organise specific parameters such as:

• Maximum voltage and current ratings
• Power dissipation and thermal resistance
• Switching frequency and rise time
• Input and output capacitance
• Operating temperature range
• Tolerance and derating requirements

Do not rely on Claude’s memory for part specifications. Datasheets can change between component variants, packages and manufacturers.

6. Separate Calculation, Simulation and Review

Complex tasks are easier to verify when divided into controlled stages:

1. Problem definition: Record the inputs, assumptions and required result.
2. Analytical calculation: Apply the specified engineering equations.
3. Simulation: Test the design under nominal and boundary conditions.
4. Comparison: Identify differences between calculated and simulated values.
5. Technical review: Check ratings, tolerances, safety margins and failure modes.

This workflow makes errors easier to locate than asking Claude to complete the entire design in one response.

7. Use Claude Code for Repeatable Analysis

Claude Code can help generate Python scripts, SPICE netlists, test cases and documentation for recurring engineering tasks. For example, it can create a parameter-sweep script that evaluates circuit behaviour across multiple resistance, voltage or frequency values.

Use version control and test the generated code with known inputs before applying it to a live system. Following these Claude Code tips and best practices can help make the workflow more consistent.

8. Treat Every Output as an Engineering Draft

Claude-generated calculations, schematics, component recommendations and fault diagnoses require professional review. This is especially important for mains electricity, high-voltage equipment, batteries, medical electronics, automotive systems and safety-critical control systems.

Before implementation, confirm the result through independent calculations, simulation, datasheets, laboratory testing and applicable electrical standards. Claude can accelerate engineering work, but responsibility for the final design remains with the qualified engineer.

If you are exploring AI tools and engineering workflows, understanding how to train Claude AI for electrical engineering tasks can improve your productivity. To go deeper, you can explore GUVI’s IIT Pravartak AI and ML Course to learn how these systems are applied in real-world scenarios.

Conclusion

Training Claude AI for electrical engineering is not about turning a language model into an electrical engineer. It is about building a controlled workflow in which Claude helps define problems, organise calculations, generate simulation inputs, interpret results and document technical findings.

Its reliability depends on the quality of the context it receives. Complete circuit parameters, applicable engineering laws, component limits and expected outputs must be stated clearly. Every critical result should then be verified through independent calculations, datasheets, simulation software and physical testing.

When used responsibly, Claude can reduce repetitive work and make complex electrical concepts easier to analyse. However, final design decisions, safety checks and regulatory compliance must always remain with qualified electrical engineers.

FAQs
