Getting Started with Data Visualization in Python

By Roopa Dharshini

Jul 01, 2025 5 Min Read 227 Views

(Last Updated)

Are you interested in learning about data visualization in Python? We got you covered!

In this blog, we will explore data visualization in Python, its history, limitations, different types of visualization techniques, and its implementation using different libraries such as matplotlib, seaborn, and plotly in Python. Along with this, we will also look into the best practices in data visualization. Let’s get started!

The World before the Creation of Data Visualization
How does Data Visualization overcome these limitations?
Matplotlib

Bar Chart
Line Chart
Pie Chart
Scatter Plot
Histogram Plot

Seaborn

Line Chart
Bar Chart
Scatter Plot
Heat Map

Plotly

Line Chart
Bar Chart
Pie Chart

Data Visualization Best Practices
Conclusion

The World before the Creation of Data Visualization

Before the development of Data Visualization tools, users would frequently analyze and visualize information using traditional methods such as spreadsheets, tables, and text-based reports. These methods had several limitations, such as:

Difficult to manually scan huge amounts of data, which would be time-consuming and error-prone.
Difficult to communicate complex data to others in a clear and easy-to-understand format.
Difficult to identify the correlation between different variables that can help predict the future outcome of certain variables.
Difficult to gain a deep understanding of the data, as it was presented in a raw and unprocessed format.

How does Data Visualization overcome these limitations?

With the invention of Data Visualization tools,

Made it easy to quickly identify patterns and trends in data.
Made it easy to communicate complex data in a clear and easy-to-understand format.
Made it easier to identify the correlation between different variables, and also to gain a deeper understanding of the data.

With this understanding, now let us deep dive into the Data Visualization Tools.

Data Visualization tools help us to understand large and complex data sets by using visual elements like charts, graphs, and maps, and also make it possible to quickly identify patterns and trends that would be difficult to detect in raw data.

With the popularity of Python as a programming language for data analysis, there are several libraries available for building creative and informative visualizations.

In this beginner’s guide, we’ll cover some of the most popular libraries as well as approaches for creating informative plots, and we will see how it makes a great choice for beginners to get started with Data Visualization.

Now, we have a basic understanding of Data Visualization and now let’s discuss the libraries we will be using to create a visualization in Python.

[InArticle Infographics 1: Include matplotlib, seaborn and plotly with title = data visualization libraries in python]

Some of the most popular libraries for Data Visualization in Python are Matplotlib, Seaborn and Plotly.

Matplotlib is the most widely used library and is a great choice for creating basic plots and charts.
Seaborn is built on top of Matplotlib and is designed for creating more complex and attractive visualizations.
Plotly is a library that allows you to create interactive plots and is a good choice if you want to create visualizations that can be explored and manipulated by the user.

Matplotlib

Before we can start creating visualizations in Matplotlib, we first need to install Matplotlib. The easiest way to do this is by using pip, the package installer for Python. Open a terminal and type in the following command:

pip install matplotlib

Once Matplotlib is installed, we can import it into our Python script using the following code:

from matplotlib import pyplot as plt

The following are the code snippets to create line, bar, pie, scatter plots and histogram using the matplotlib library.

Bar Chart

Bar charts are an effective way to visualize and compare categorical data. They are particularly useful for comparing the values of a single variable across different categories. In Matplotlib, we can create bar charts using the bar() or barh() function. The bar() function creates a vertical bar chart, while the barh() function creates a horizontal bar chart.

Here is an example of how to create a bar chart using Matplotlib:

from matplotlib import pyplot as plt

courses = [“Python”, “Java”, “C”, “C++”, “C#”]
sales = [50, 45, 30, 40, 43]

plt.bar(courses, sales, width=0.5)

plt.xlabel(“Courses available”)
plt.ylabel(“No. of sales”)
plt.title(“Sales data”)
plt.show()

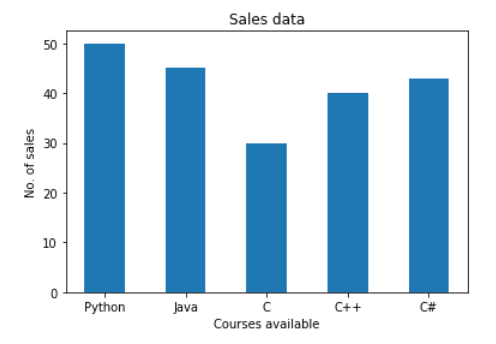

Matplotlib Bar Chart Output

Line Chart

Line charts are an effective way to visualize and compare continuous data over time. They are particularly useful for visualizing trends and changes in data over time. In Matplotlib, we can create line charts using the plot() function.

Here is an example of how to create a line chart using Matplotlib:

from matplotlib import pyplot as plt

mobile = [100000, 110000, 120000, 130000, 140000, 150000, 160000, 170000]
laptop = [50000, 61000, 72000, 73000, 75000, 77000, 78000, 79000]
smart_watch = [80000, 81000, 82000, 83000, 84000, 85000, 86000, 87000]
head_phone = [90000, 91000, 92000, 93000, 94000, 95000, 96000, 97000]

plt.plot(mobile, label=’mobile’)
plt.plot(laptop, label=’laptop’)
plt.plot(smart_watch, label=’smart watch’)
plt.plot(head_phone, label=’head_phone’)

plt.xlabel(‘Year’)
plt.ylabel(‘No. of Sales’)
plt.title(‘Gadget Sales’)
plt.legend()
plt.show()

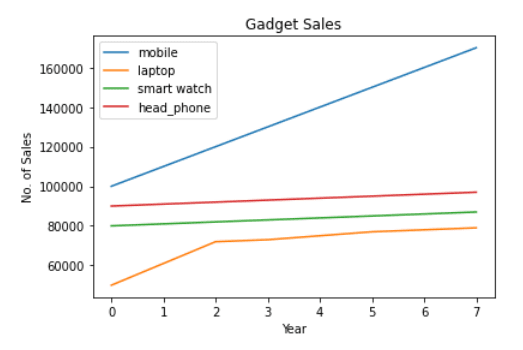

Matplotlib Line chart Output

Pie Chart

Pie charts are an effective way to visualize the proportion of different categories in a dataset. They are particularly useful for visualizing data that can be divided into a small number of categories. In Matplotlib, we can create pie charts using the pie() function.

Here is an example of how to create a pie chart using Matplotlib:

from matplotlib import pyplot as plt
import numpy as np

x = np.array([2, 4, 3, 6, 7])
label = [‘apple’, ‘orange’, ‘grape’, ‘cherry’, ‘papaya’]

plt.pie(x, labels=label, autopct=’%1.2f%%’)
plt.legend(title=’Fruits’)
plt.show()

Matplotlib Pie chart Output

Scatter Plot

Scatter plots are an effective way to visualize the relationship between two variables in a dataset. They are particularly useful for visualizing data with a large number of points. In Matplotlib, we can create scatter plots using the scatter() function.

Here is an example of how to create a scatter plot using Matplotlib:

from matplotlib import pyplot as plt
import numpy as np

# Day one, the age and speed of 13 cars:
x = np.array([5,7,8,7,2,17,2,9,4,11,12,9,6])
y = np.array([99,86,87,88,111,86,103,87,94,78,77,85,86])
plt.scatter(x, y)
plt.scatter(x, y, marker=’o’)

# Day two, the age and speed of 15 cars:
x = np.array([2,2,8,1,15,8,12,9,7,3,11,4,7,14,12])
y = np.array([100,105,84,105,90,99,90,95,94,100,79,112,91,80,85])
plt.scatter(x, y, marker=’*’)

plt.title(‘Scatter Plot’)
plt.xlabel(‘age’)
plt.ylabel(‘speed’)
plt.colorbar()
plt.show()

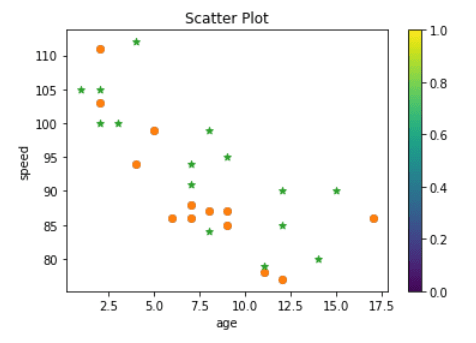

Matplotlib Scatter plot Output

Histogram Plot

In addition to line plots, scatter plots, and bar plots, Matplotlib also allows us to create histograms. Histograms are useful for visualizing the distribution of a dataset. They are particularly useful for understanding the distribution of continuous variables, such as ages, heights or weights. In Matplotlib, we can create histogram plots using the hist() function.

Here is an example of how to create a histogram plot using Matplotlib:

from matplotlib import pyplot as plt

ages = [10, 20, 42, 23, 12, 11, 34, 45, 21, 17, 46, 23, 33,
35, 34, 12, 16, 54, 31, 22, 23, 25, 24, 26, 29, 39,
40, 41]

plt.hist(ages,edgecolor=”black”)

plt.title(“Age Group”)
plt.xlabel(“Ages”)
plt.ylabel(“Frequencies”)
plt.show()

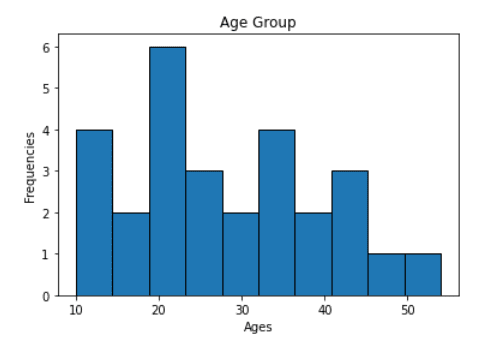

Matplotlib Histogram plot Output

Are you looking for a perfect roadmap and guide to start your data science career? Worry not, enroll in Guvi’s FREE E-book on Master the Art of Data Science – A Complete Guide. This is a great way to start your career.

Seaborn

Now we will explore the seaborn library. To work with the seaborn library, first, we need to install the package using the following command:

pip install seaborn

Once Seaborn is installed, we can import it into our Python script using the following code:

import seaborn as sns

The following are the code snippets to create line, bar, scatter plots, and heat maps using the seaborn library.

Line Chart

In Seaborn, line plots can be used to visualize the trend of one or more variables over time or across categories. It can be created using the lineplot() function.

Here is an example of how to create a line plot using Seaborn:

import seaborn as sns
import matplotlib.pyplot as plt

# Loaded a ‘tips’ dataset from seaborn
tips = sns.load_dataset(“tips”)

# Create a line plot of the total bill by day of the week
sns.lineplot(x=”day”, y=”total_bill”, data=tips)

plt.title(“Total Bill by Day of the Week”)
plt.xlabel(“Day of the Week”)
plt.ylabel(“Total Bill”)
plt.show()

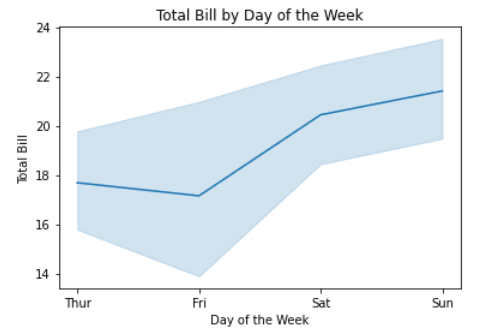

Seaborn Line chart Output

Bar Chart

In Seaborn, bar plots can be used to visualize the distribution of a categorical variable. It can be created using the countplot() function.

Here is an example of how to create a bar plot using Seaborn:

import seaborn as sns
import matplotlib.pyplot as plt

# Loaded a ‘tips’ dataset from seaborn
tips = sns.load_dataset(“tips”)

# Create a bar plot of the number of customers by day of the week
sns.countplot(x=”day”, data=tips)

plt.title(“Number of Customers by Day of the Week”)
plt.xlabel(“Day of the Week”)
plt.ylabel(“Number of Customers”)
plt.show()

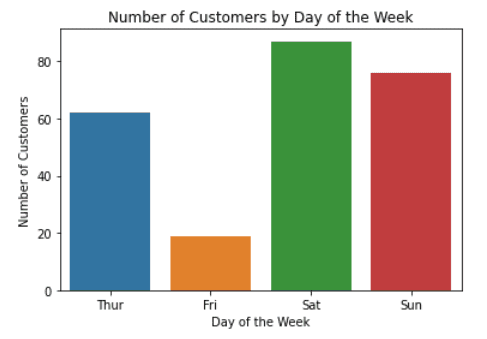

Seaborn Bar chart Output

Scatter Plot

In Seaborn, scatter plots can be used to visualize the relationship between two continuous variables. It can be created using the scatterplot() function.

Here is an example of how to create a scatter plot using Seaborn:

import seaborn as sns
import matplotlib.pyplot as plt

# Loaded a ‘tips’ dataset from seaborn
tips = sns.load_dataset(“tips”)

# Create a scatter plot of total bill vs. tip
sns.scatterplot(x=”total_bill”, y=”tip”, data=tips)

plt.title(“Total Bill vs. Tip”)
plt.xlabel(“Total Bill”)
plt.ylabel(“Tip”)
plt.show()

Seaborn Scatter plot Output

Heat Map

In Seaborn, heat maps can be used to visualize the relationship between two categorical variables and one continuous variable. It can be created using the heatmap() function.

Here is an example of how to create a heat map using Seaborn:

import seaborn as sns
import matplotlib.pyplot as plt

# Loaded a ‘flights’ dataset from seaborn
flights = sns.load_dataset(“flights”)

# Create a pivot table to aggregate the flight data
flights_pivot = flights.pivot(“month”, “year”, “passengers”)

# Create a heat map of the flight data
sns.heatmap(flights_pivot, cmap=”plasma”)

plt.title(“Number of Passengers by Month and Year”)
plt.show()

Seaborn Heat Map Output

Plotly

Now we will explore the plotly library. To work with the plotly library, first we need to install the package using the following command:

pip install plotly

Once Plotly is installed, we can import it into our Python script using the following code:

import plotly.express as px

Following are the code snippets to create line, bar, and pie chart using plotly library.

Line Chart

import plotly.express as px

x = [1, 2, 3, 4, 5]
y = [2, 4, 6, 8, 10]

# Create the line chart
fig = px.line(x=x, y=y)
fig.show()

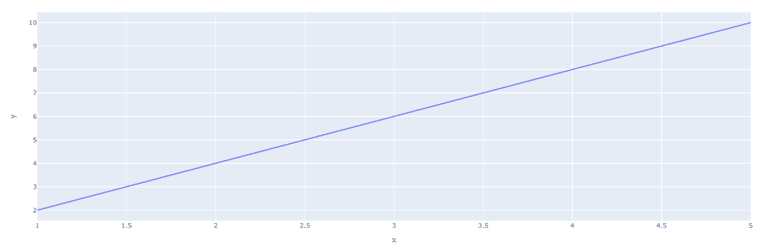

Plotly Line chart Output

Bar Chart

import plotly.express as px

x = [“Python”, “Java”, “C”, “C++”, “C#”]
y = [50, 45, 30, 40, 43]

# Create the bar chart
fig = px.bar(x=x, y=y, title=”My Bar Chart”)
fig.show()

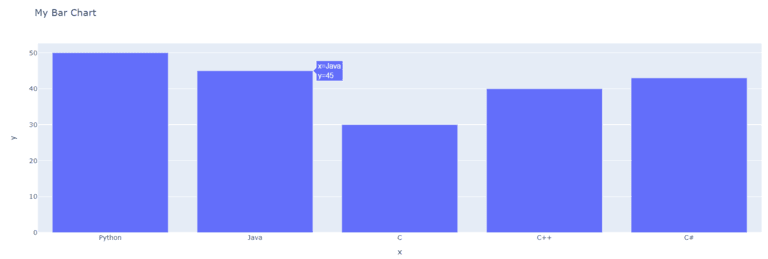

Plotly Bar chart Output

Pie Chart

import plotly.express as px

# Loaded a ‘tips’ dataset from plotly
df = px.data.tips()

fig = px.pie(df, values=’tip’, names=’day’)
fig.show()

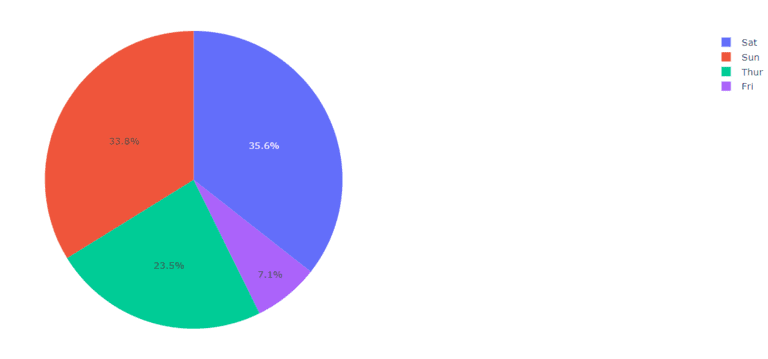

Plotly Pie chart Output

Incorporating emerging trends into data science will fuel the rapid growth of this field, unlocking countless opportunities for aspiring data scientists. If you’re ready to take advantage of this moment and launch your career, enroll in Guvi’s industry-recognized, certified “Become a Data Science Professional with IIT-M Pravartak” course today.

Data Visualization Best Practices

Data visualization is an effective way to communicate complex information and insights, but it’s important to follow some best practices to ensure that your visualizations are effective and meaningful. Here are some of the most important best practices for Data Visualization:

Before creating a visualization, consider who your audience is and what message you want to convey. This will help you choose the appropriate type of visualization and design elements.
Choose the type of visualization that best represents the data you want to communicate. For example, use a bar chart for categorical data and a line chart for continuous data.
Avoid using too many elements or colors in your visualization, as this can make it confusing or overwhelming.
Choose a scale that accurately represents the range of values in your data.
Before creating a visualization, validate your data to ensure that it is accurate and meaningful.

Conclusion

Now, we are in the final touch of this beginner’s guide. In conclusion, Data Visualization is a powerful tool for understanding and analyzing data. I hope now you are able to create your plots and start visualizing your data and can quickly identify patterns and trends in data using some of the most popular libraries such as Matplotlib, Seaborn and Plotly.
