Build a Neural Network Using TensorFlow: A Practical Guide

Building a neural network using TensorFlow allows you to create models that learn patterns from complex data, mimicking how the human brain processes information. In fact, neural networks can find any kind of relation regardless of its complexity, provided the network is optimized enough.

TensorFlow, an open-source library developed by Google, serves as a powerful tool for these computations. This guide walks you through what is TensorFlow, understanding what is a neural network model, and how to build a simple neural network using TensorFlow step by step, complete with a practical tensorflow neural network example for beginners. Let’s begin!

Quick Answer:

A neural network in TensorFlow is built by defining layers, compiling the model with an optimizer and loss function, and training it on data using the fit() method to learn patterns and make predictions.

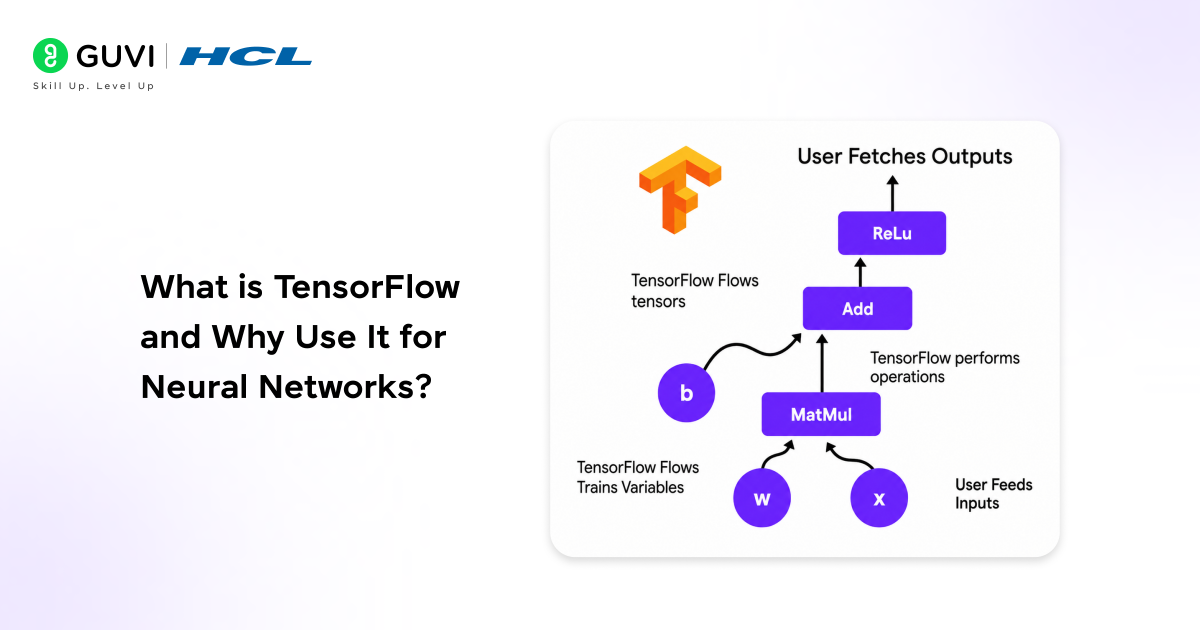

What is TensorFlow and Why Use It for Neural Networks?

TensorFlow stands as an open-source framework developed by the Google Brain team, making its public debut in 2015. This toolkit handles numerical computation and large-scale machine learning through data flow graphs, where nodes represent mathematical operations and edges carry multidimensional data arrays called tensors.

The framework operates under an Apache open-source license, which means you can use, modify, and redistribute it without any costs. Google uses TensorFlow extensively across its product lineup, powering features in Search, Translation, image captioning, and recommendations.

The tech giant leverages machine learning on vast datasets to enhance user experiences, and TensorFlow serves as the foundation for these capabilities.

1) Key Features Of TensorFlow

• TensorFlow offers TensorBoard, a visualization toolset that helps you understand, debug, and optimize your programs. You can view tensor flow through your network, making it easier to identify architectural issues. The framework supports training on various hardware types including CPUs, GPUs, and TPUs, enabling flexible and efficient computations.
• The platform provides parallel training through distributed computing, allowing simultaneous processing across multiple CPUs or GPUs to speed up training times.
• TensorFlow’s scalability extends from desktop systems to mobile devices and embedded systems. For deployment, you get specialized tools: TensorFlow Lite compresses models for mobile and embedded devices, while TensorFlow.js executes models directly in web browsers using WebGL.
• Notably, TensorFlow includes automatic differentiation that calculates gradients for all trainable variables, simplifying the backpropagation process during training. TensorFlow Hub provides pre-trained models you can integrate into applications, and TensorFlow Extended (TFX) offers an end-to-end platform for deploying production-ready models. Since 2019, Keras functions as TensorFlow’s official high-level API, adding simplicity to model development.

3) TensorFlow vs Other Frameworks

• TensorFlow encompasses both high and low-level APIs, whereas PyTorch operates solely with a low-level API and Keras features only a high-level API. In contrast to PyTorch’s strength in academic research, TensorFlow excels at production deployment with mature serving systems. The framework benefits from extensive backing by Google and a larger user base.
• For large datasets, TensorFlow and PyTorch outperform Keras, benefiting from superior training duration and parameter adjustment. TensorFlow offers compact models with enhanced accuracy, while PyTorch entails more code lines and complexity. By the same token, TensorFlow presents debugging challenges compared to PyTorch’s better debugging capabilities.
• TensorFlow features a steeper learning curve than Keras, which boasts straightforward, readable architecture attractive to beginners. However, TensorFlow’s complexity comes with production-ready tools like TF Serving that manage web traffic natively.

4) When To Use TensorFlow For Neural Networks

• You should choose TensorFlow for neural networks for production deployment scenarios where scalability matters. The framework suits enterprise AI applications requiring deployment across web, mobile, and edge devices. TensorFlow Lite enables lightweight models for resource-constrained environments, while TensorFlow.js allows models to run in browsers.
• For large-scale projects handling substantial datasets, TensorFlow provides the robustness and performance you need. The framework works well when you require cross-platform machine learning that runs consistently across different hardware configurations. Companies like Carousell, Spotify, and Twitter use TensorFlow for production systems ranging from image recognition to recommendation engines.
• TensorFlow serves data scientists, researchers, and programmers who need a shared toolbox for collaboration. If your project demands distribution across multiple GPUs or TPU training for faster computation, TensorFlow’s architecture delivers the necessary infrastructure.

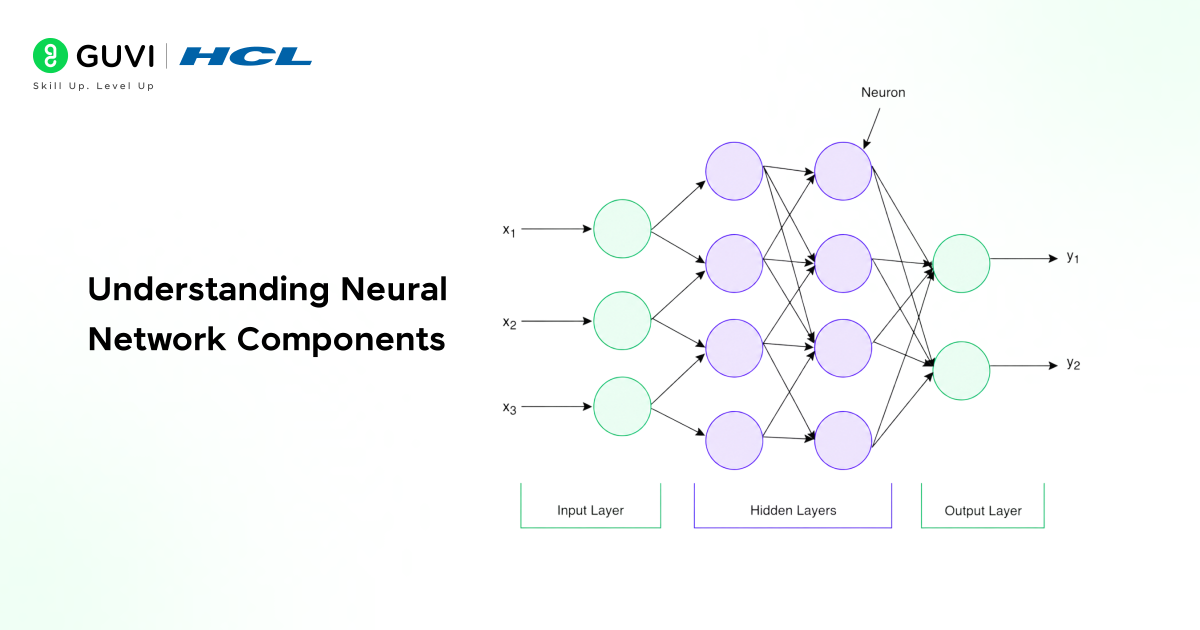

Understanding Neural Network Components

A neural network model functions as a machine learning system where a computer learns to perform tasks by analyzing training examples. Modeled loosely on the human brain, these networks consist of thousands or even millions of simple processing nodes that are densely interconnected. Understanding what a neural network model is helps you build one effectively in TensorFlow.

1) What is a Neural Network Model?

Neural networks organize themselves into layers of nodes, operating as feed-forward systems where data moves through them in only one direction. Each individual node connects to several nodes in the layer beneath it, receiving data from those connections, and several nodes in the layer above it, sending data upward.

The network assigns a number called a weight to each incoming connection. When active, a node receives a different data item over each connection and multiplies it by the associated weight. It then adds these products together, yielding a single number. If that number falls below a threshold value, the node passes no data to the next layer.

If the number exceeds the threshold, the node fires, sending the sum of weighted inputs along all its outgoing connections.

During training, all weights and thresholds start with random values. Training data feeds to the bottom layer and passes through succeeding layers, getting multiplied and added together in complex ways, until it arrives at the output layer, radically transformed.

2) Input, Hidden, And Output Layers

• The input layer receives raw input from your dataset. No computation happens at this layer. Nodes here just pass information to the hidden layer. For example, if you have a 28×28 pixel black-and-white image, the input layer contains 784 neurons, one per pixel.
• Hidden layers sit between the input and output layers. These intermediate layers perform most computations required by the network. Each hidden layer applies weights and biases to the input data, followed by an activation function that introduces nonlinearity. The value of each neuron is calculated the same way as the output of a linear model: taking the sum of the product of each input and a unique weight parameter, plus the bias.
• The output layer produces final predictions. The number of neurons in this layer corresponds to the number of classes in classification problems or the number of outputs in regression problems. For binary classification, you use sigmoid activation. For multi-class classification, softmax works best. For regression, a linear activation function suits the task.

3) Activation Functions Explained

Without activation functions, neural networks would only model linear relationships between inputs and outputs. Linear operations performed on linear operations remain linear. Real-world data exhibits non-linear patterns. Activation functions introduce non-linearities, allowing neural networks to learn complex mappings between inputs and outputs.

• Sigmoid function transforms input to produce output values between 0 and 1. This makes it useful for binary classification problems. The function exhibits an S-shaped curve.
• Tanh (hyperbolic tangent) transforms input to produce output values between -1 and 1. It handles negative values more effectively than sigmoid. The zero-centered output facilitates easier learning for subsequent layers.
• ReLU (Rectified Linear Unit) returns 0 for negative input values and returns the input itself for positive values. ReLU often works better as an activation function than smooth functions like sigmoid or tanh because it is less susceptible to the vanishing gradient problem during training. ReLU is also significantly easier to compute than these functions.

Stacking nonlinearities on nonlinearities lets you model very complicated relationships between inputs and predicted outputs. In effect, each layer learns a more complex, higher-level function over the raw inputs.

4) Dense Layers And Connections

• Dense layers, also called fully connected layers, connect every neuron to every neuron in the previous and subsequent layers. A dense layer consists of weights and biases applied to the input wrapped in an activation function.
• Dense layers implement the operation: output = activation(dot(input, kernel) + bias), where kernel is a weights matrix created by the layer. The layer performs a weighted sum of inputs and applies an activation function to introduce non-linearity.
• When you add hidden layers to your network, the disconnected nature means more parameters exist. For instance, a network with 3 inputs, 4 hidden neurons, and 1 output contains 21 parameters total: 16 parameters for calculating the 4 hidden node values (3 weights plus 1 bias for each node) and 5 parameters for calculating the output (4 weights plus 1 bias).

How to Build a Neural Network Model Using TensorFlow: Step-by-Step

Working with real data transforms theoretical knowledge into practical skills. This section demonstrates how to build a neural network using TensorFlow through a hands-on tensorflow neural network example that takes you from raw data to a trained model.

Step 1: Loading And Preparing Your Dataset

You can use any dataset you want for building your model. The MNIST dataset contains 60,000 training and 10,000 testing images of handwritten digits. Load this dataset using the load_data() function in the tensorflow.keras.datasets.mnist module. The function returns two tuples containing train and test data:

import tensorflow as tf

mnist_dataset = tf.keras.datasets.mnist

(x_train, y_train), (x_test, y_test) = mnist_dataset.load_data()

Neural networks perform better on data within the same range. If one column ranges from 1-10 while another spans 100-1000, scale all columns to the same range first. Normalize pixel values to be between 0 and 1 by dividing by 255.0, which also converts sample data from integers to floating-point numbers:

x_train, x_test = x_train / 255.0, x_test / 255.0

Split your data into training, validation, and testing sets. You can use the sample function to fetch 75% of data for training, then drop those indices from the original dataframe for validation.

Step 2: Creating a Sequential Model

The Sequential class in Keras module groups a linear stack of layers into a model. A Sequential model suits situations where each layer has exactly one input tensor and one output tensor. Create the model by passing a list of layers to the Sequential constructor:

model = tf.keras.Sequential([

    tf.keras.layers.Flatten(input_shape=(28, 28)),

    tf.keras.layers.Dense(128, activation='relu'),

    tf.keras.layers.Dense(10)

])

You can also build models incrementally using the add() method. This approach offers flexibility when experimenting with different architectures.

Step 3: Adding Layers To Your Network

The Flatten layer converts 28×28 images into 784-element vectors, preparing data for Dense layers. Dense layers are fully connected layers where every neuron receives input from every neuron in the previous layer.

Define hidden layers using the Dense() function, which takes the number of neurons as the first argument and activation function name as the activation parameter. A three-layer network with one input layer, one hidden layer with 64 units, and one output layer looks like this:

model = tf.keras.Sequential([

    tf.keras.layers.Dense(units=64, activation='relu', input_shape=input_shape),

    tf.keras.layers.Dense(units=64, activation='relu'),

    tf.keras.layers.Dense(units=1)

])

For multi-class classification problems with ten classes, create an output layer with ten neurons using softmax activation.

Step 4: Configuring The Model With Compile

After creating your model architecture, compile it to configure training parameters. The compile() method specifies the optimizer, loss function, and metrics. Adam optimizer works well for all kinds of problems and serves as a good starting point:

model.compile(optimizer='adam',

              loss='categorical_crossentropy',

              metrics=['accuracy'])

For binary classification, use binary crossentropy loss. For multi-class classification with one-hot encoded labels, categorical crossentropy fits best. Regression problems typically use mean absolute error (MAE) or mean squared error.

Step 5: Understanding Model Parameters

Call the summary() method after defining your model to display its architecture. The summary shows layer types, output shapes, and parameter counts. A neural network with 109,386 parameters requires training using your dataset to learn optimal values. Parameters include weights and biases that the model adjusts during training to minimize loss and improve predictions.

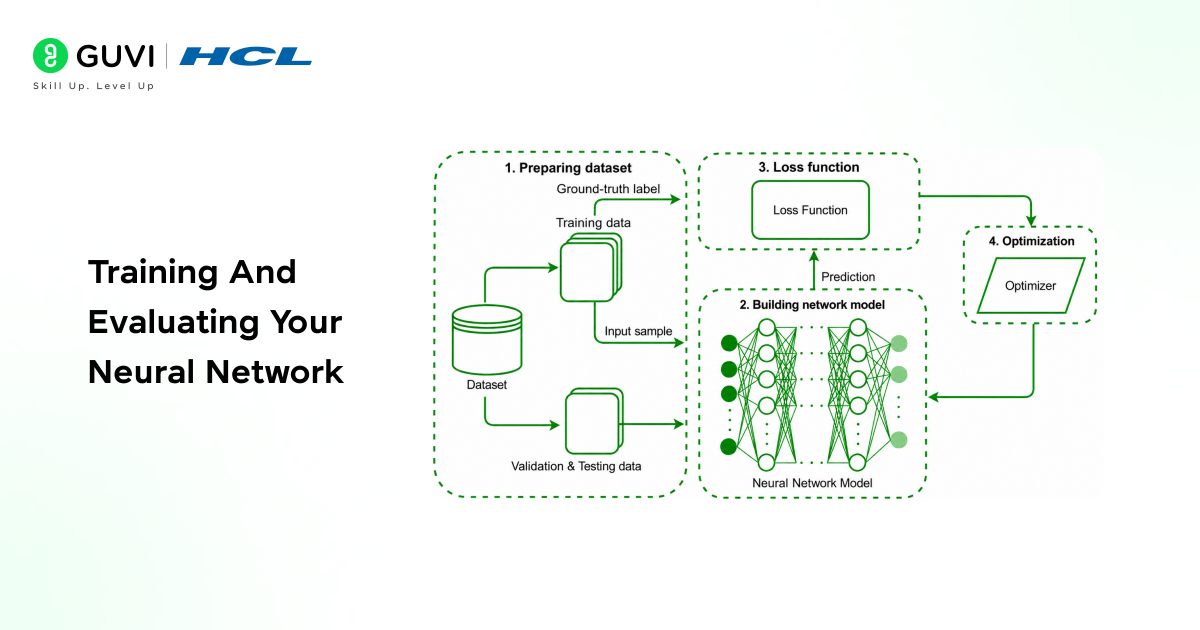

Training And Evaluating Your Neural Network

Training your neural network transforms the compiled architecture into a functional model that learns from data. The fit method handles this entire process, adjusting weights and biases through multiple iterations until the model achieves optimal performance.

1) Training The Model With fit Method

Call the fit() method on your compiled model to start training. This method slices your data into batches and repeatedly processes the entire dataset for a specified number of epochs:

history = model.fit(

    x_train,

    y_train,

    batch_size=64,

    epochs=5,

    validation_data=(x_val, y_val)

)

The method accepts your training data (x_train, y_train), batch size, number of epochs, and optional validation data. During training, the model performs forward passes to make predictions, calculates loss by comparing predictions to true values, computes gradients through backpropagation, and updates weights using your chosen optimizer.

2) Setting Epochs And Batch Size

• Batch size defines the number of training samples processed before the model updates its internal parameters. Common batch sizes include 32, 64, and 128 samples. Given that smaller batches update weights more frequently, they can lead to faster learning but noisier gradients.
• Epochs represent complete passes through your entire training dataset. One epoch means each sample has had an opportunity to update the model parameters. If you have 1,000 samples with a batch size of 100, one epoch consists of 10 iterations (1,000 ÷ 100 = 10). The number of epochs is traditionally large, often hundreds or thousands.

3) Monitoring Training Progress

The fit method returns a history object containing loss values and metric values recorded during training. Access this data through history.history, which provides a dictionary mapping metric names to their values at each epoch. You can plot these metrics to visualize how your model learns over time.

4) Making Predictions With Your Model

Use the predict() method to generate predictions on new data. Pass your test data to this method, and it returns the model’s output based on what it learned during training.

5) Analyzing Model Accuracy

Evaluate your trained model using the evaluate() method, which returns loss value and any metrics you specified during compilation. This assessment shows how well your model generalizes to unseen data.

Accelerate your journey from theory to real-world AI by enrolling in HCL GUVI’s AI & ML Course—where you’ll build hands-on projects, master neural networks with tools like TensorFlow, and gain industry-ready skills. With expert mentorship and practical learning, this course helps you move beyond basics to confidently deploy intelligent models.

Concluding Thoughts…

Building neural networks with TensorFlow becomes straightforward once you understand the core components. You’ve learned how layers, activation functions, and training processes work together to create models that recognize patterns in data. Essentially, the framework handles complex computations while you focus on architecture and data preparation.

Start with simple projects like the MNIST example to build confidence. Experiment with different layer configurations, activation functions, and hyperparameters to see how they affect performance. TensorFlow’s flexibility allows you to scale from basic prototypes to production-ready models. The best way to master neural networks is through hands-on practice, so apply these concepts to your own datasets and watch your skills grow. Good Luck!

FAQs

Q1. Is TensorFlow commonly used for building neural networks?

Yes, TensorFlow is widely used for neural network development. Released by Google in 2015 as an open-source framework, it supports deep learning, neural networks, and numerical computations across various hardware including CPUs, GPUs, and GPU clusters.

Q2. What programming language is used to build models like ChatGPT?

Python serves as the primary programming language for building advanced AI models. It’s used for training, fine-tuning, and running machine learning models with deep learning frameworks like TensorFlow and PyTorch.

Q3. What are the main types of layers in a neural network?

Neural networks typically consist of three main layer types: input layers that receive raw data, hidden layers that perform computations and learn patterns, and output layers that produce final predictions. The most common layer architectures include fully connected (dense), convolution, deconvolution, and recurrent layers.

Q4. Is deep learning more difficult to learn than traditional machine learning?

Deep learning is generally considered more complex than other machine learning approaches. While deep learning is a subset of machine learning, many other ML techniques are easier to learn and implement, especially for beginners looking to incorporate machine learning into their projects.

Q5. How do I start training a neural network in TensorFlow?

To train a neural network in TensorFlow, use the fit() method on your compiled model. You’ll need to specify your training data, set parameters like batch size and epochs, and optionally include validation data. The model will then automatically adjust its weights through multiple iterations to learn from your dataset.
