Docling AI Explained: A Comprehensive Guide to Parsing

Have you ever tried feeding a PDF into an AI system, only to get back a jumbled, context-free wall of text? If you have, you already know that the problem isn’t the AI, it’s the document parsing layer sitting in front of it.

The quality of what goes in directly shapes the quality of what comes out, and most traditional parsing tools simply weren’t built with AI workflows in mind. That’s exactly the gap Docling was designed to fill.

In this article, you’ll get a complete walkthrough of what Docling AI is, how it works, and how you can start using it in your own AI pipelines. So, without further ado, let us get started!

Quick Answer:

Docling is an open-source Python toolkit developed by IBM that parses unstructured documents, PDFs, Word files, spreadsheets, and more, into structured, AI-ready formats like Markdown, JSON, and HTML, using built-in AI models to preserve layout, tables, and reading order.

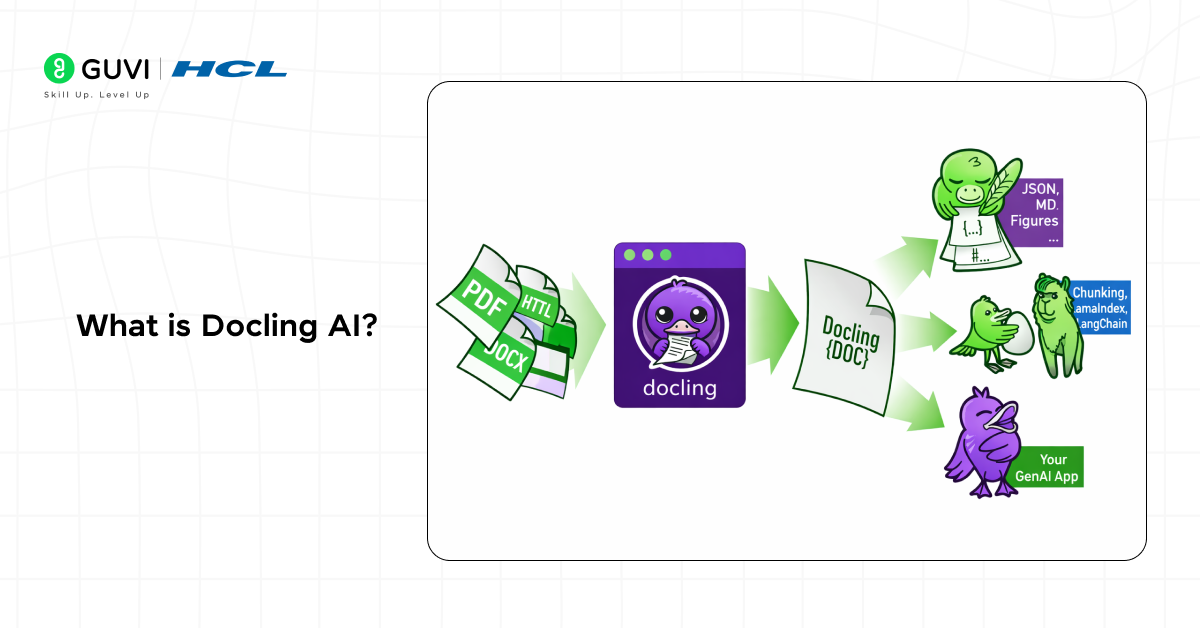

What is Docling AI?

If you’ve ever tried to extract meaningful content from a PDF and ended up with a scrambled mess of text, you already understand the problem Docling was built to solve.

Docling is an open-source Python package for document conversion, initially developed by IBM’s AI for Knowledge team at IBM Research Zurich. It was open-sourced in July 2024 and has since gained remarkable traction in the developer community, gathering more than 30,000 GitHub stars and being identified as the top trending repository worldwide in November 2024.

At its core, Docling is an open-source framework that converts unstructured documents into structured, machine-readable formats. Instead of producing a raw text dump like most PDF tools, Docling analyses the layout and turns each page into a structured hierarchy.

Think of it this way: most document parsers treat a PDF like a text file. Docling treats it like what it actually is, a structured document with headings, paragraphs, tables, figures, footnotes, and a specific reading order. That distinction is everything when you’re feeding documents into AI systems.

Why Docling Matters for AI Workflows

Here’s something worth understanding early: document parsing quality has a direct impact on the quality of AI outputs. Whether you’re working on a RAG (Retrieval-Augmented Generation) pipeline, fine-tuning an LLM, or building a document intelligence application, the structure of your input data determines the quality of everything downstream.

When poorly processed documents are fed into RAG systems, the consequences are severe: related content gets split across chunks inappropriately, complex layouts confuse simple text extraction, and structured elements like tables lose their semantic meaning.

That’s not a small use case. That’s production-grade, industrial-scale document processing.

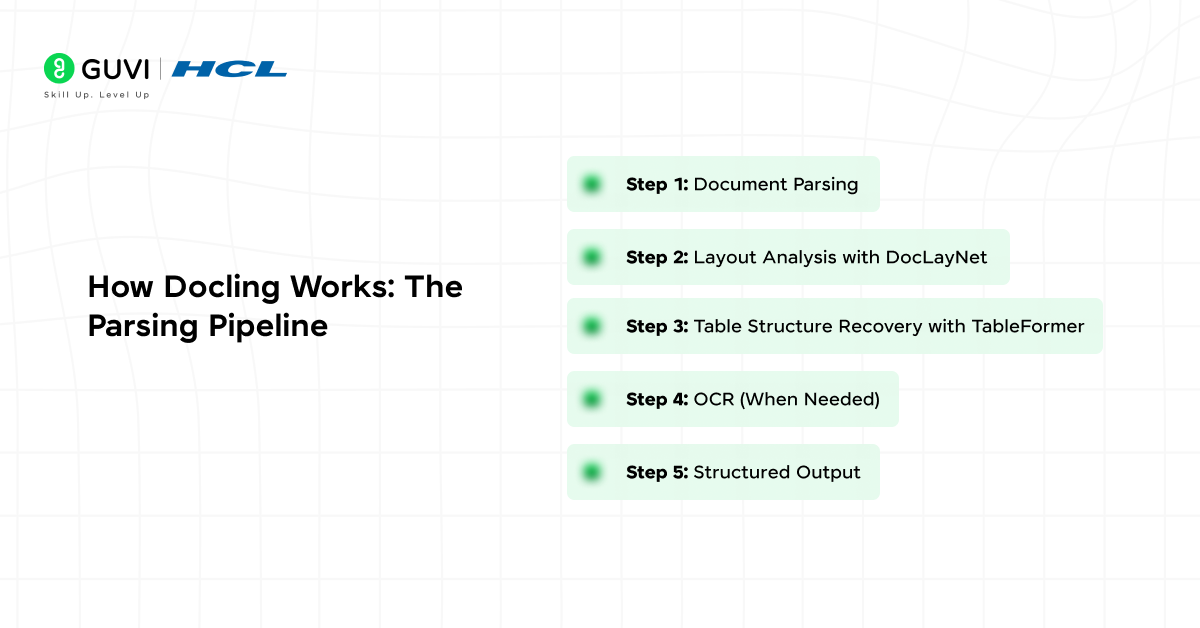

How Docling Works: The Parsing Pipeline

Understanding what Docling does under the hood helps you use it more effectively. When you feed a document into Docling, it doesn’t just extract text, it runs the document through a structured pipeline.

Step 1: Document Parsing

For PDFs, Docling provides backends that retrieve all text content and their geometric properties, and render the visual representation of each page as it would appear in a PDF viewer. For other formats like Word, HTML, or Markdown, the appropriate parsing libraries handle format-specific extraction.

Step 2: Layout Analysis with DocLayNet

When you feed a document into Docling, two AI models analyze it. The first handles layout analysis: models trained on DocLayNet identify different elements like headers, body text, tables, and images by analyzing page layouts.

DocLayNet is a human-annotated dataset developed by IBM Research specifically for document layout understanding. This is what allows Docling to distinguish a heading from a paragraph, or a figure caption from body text.

Step 3: Table Structure Recovery with TableFormer

TableFormer is a vision-transformer model for table structure recovery that can handle complex tables with partial or no borderlines, empty cells, cell spans, and hierarchical headers.

This is one of Docling’s standout capabilities. Tables are notoriously difficult to parse, especially those spanning multiple pages or containing merged cells. TableFormer was purpose-built to handle these edge cases accurately.

Step 4: OCR (When Needed)

For scanned documents or image-based PDFs, Docling integrates OCR capabilities. OCR capabilities are available through integration with EasyOCR, which means even non-digital documents aren’t out of reach.

Step 5: Structured Output

The extracted data can be exported into Markdown, HTML, JSON, or image files. Instead of losing structure, Docling preserves the shape of the document so it can be read by LLMs, analysed by downstream applications, or used in retrieval systems.

Supported Document Formats

One of Docling’s most practical advantages is its broad format support. You’re not limited to PDFs.

Docling supports parsing of multiple document formats including PDF, DOCX, PPTX, XLSX, HTML, images (PNG, TIFF, JPEG), LaTeX, and more. It also supports several application-specific XML schemas including USPTO patents, JATS articles, and XBRL financial reports.

That last point is significant. If you’re working in legal, finance, or academic research, having native support for domain-specific XML schemas means you’re not trying to hammer a general-purpose tool into a specialised workflow.

Getting Started: Installing and Running Docling

Getting Docling up and running is refreshingly straightforward. Docling features a command-line interface, a Python API, and is small enough to run on a standard laptop. It takes just five lines of code to set up.

Installation

You can install Docling directly via pip:

pip install docling

Note: Python 3.10 or higher is required. Docling works on macOS, Linux, and Windows environments, supporting both x86_64 and arm64 architectures.

Basic Usage

Here’s the minimal code to parse a document and export it to Markdown:

from docling.document_converter import DocumentConverter

source = "https://arxiv.org/pdf/2408.09869"  # or a local file path

converter = DocumentConverter()

result = converter.convert(source)

print(result.document.export_to_markdown())

That’s it. Three lines of functional code to go from a PDF to structured Markdown. Docling implements a linear pipeline of operations which execute sequentially on each given document, so each conversion follows the same reliable process regardless of your input.

Using the CLI

If you prefer not to write code, Docling also ships with a built-in command-line interface:

docling path/to/your/document.pdf --output ./output

This makes it easy to process documents in batch or as part of shell scripts without needing a Python environment configured.

Export Formats: What You Get Out

One of the most practically useful aspects of Docling is the flexibility in how you receive your parsed data. Depending on your downstream use case, you might want:

• Markdown – clean, readable output that LLMs handle extremely well
• JSON – structured data with full document hierarchy, ideal for programmatic processing
• HTML – web-compatible output with preserved formatting
• DocTags – Docling’s own representation format for lossless fidelity

Docling partitions a document into bite-sized chunks of contiguous text, ready for ingestion by AI systems. It stores and traverses components according to reading order, detects bounding boxes per component, captures table structure including rows and columns, groups captions with their respective pictures and tables, and extracts pictures as image data.

The reading order preservation is worth highlighting here. Many document parsers extract text positionally, left to right, top to bottom, without truly understanding the flow. Docling understands that a two-column academic paper should be read in column order, not across the page.

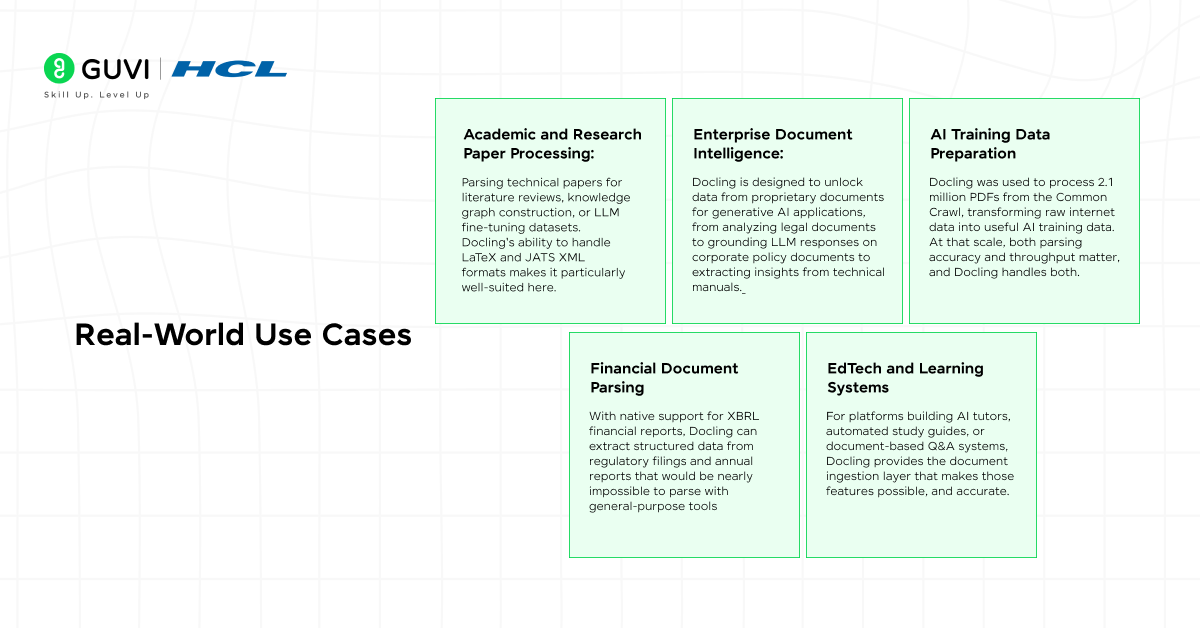

Real-World Use Cases

Understanding the theory is one thing, knowing where to apply it is another. Here are the areas where Docling is seeing the most traction:

1. Academic and Research Paper Processing: Parsing technical papers for literature reviews, knowledge graph construction, or LLM fine-tuning datasets. Docling’s ability to handle LaTeX and JATS XML formats makes it particularly well-suited here.
2. Enterprise Document Intelligence: Docling is designed to unlock data from proprietary documents for generative AI applications, from analyzing legal documents to grounding LLM responses on corporate policy documents to extracting insights from technical manuals.
3. AI Training Data Preparation Docling was used to process 2.1 million PDFs from the Common Crawl, transforming raw internet data into useful AI training data. At that scale, both parsing accuracy and throughput matter, and Docling handles both.
4. Financial Document Parsing With native support for XBRL financial reports, Docling can extract structured data from regulatory filings and annual reports that would be nearly impossible to parse with general-purpose tools.
5. EdTech and Learning Systems For platforms building AI tutors, automated study guides, or document-based Q&A systems, Docling provides the document ingestion layer that makes those features possible, and accurate.

If you’re serious about learning AI tools like this and want to apply them in real-world scenarios, don’t miss the chance to enroll in HCL GUVI’s Intel & IITM Pravartak Certified Artificial Intelligence & Machine Learning course, co-designed by Intel. It covers Python, Machine Learning, Deep Learning, Generative AI, Agentic AI, and MLOps through live online classes, 20+ industry-grade projects, and 1:1 doubt sessions, with placement support from 1000+ hiring partners.

Conclusion

In conclusion, document parsing may not be the most glamorous part of building AI systems, but it’s often the most consequential. Poor parsing leads to poor retrieval, poor retrieval leads to poor responses, and that erodes trust in the entire system.

Docling gives you a way to get this foundational layer right, with structure-aware parsing, accurate table recovery, multi-format support, and full local execution. The best AI outputs start with clean inputs, and Docling is purpose-built to make that possible.

FAQs

1. What is Docling AI used for?

Docling is used to convert unstructured documents like PDFs, Word files, and spreadsheets into structured, AI-ready formats such as Markdown, JSON, and HTML. It’s widely used in RAG pipelines, LLM training data preparation, and enterprise document intelligence workflows.

2. Is Docling AI free to use?

Yes, Docling is completely free and open-source, released under the MIT license. You can install it directly via pip and run it locally on your own machine without any subscription or API costs. There are no usage limits or cloud dependencies involved.

3. How do I install and run Docling?

You can install Docling with a single command: pip install docling (requires Python 3.10 or higher). Once installed, it takes just three to five lines of Python code to parse a document and export it to your preferred format.

4. What file formats does Docling support?

Docling supports a wide range of formats including PDF, DOCX, PPTX, XLSX, HTML, PNG, JPEG, LaTeX, and domain-specific XML schemas like XBRL and JATS. This makes it versatile enough to handle academic papers, financial reports, business documents, and scanned images all within a single tool.

5. How is Docling different from other PDF parsers?

Unlike traditional PDF parsers that extract raw text without any structural understanding, Docling uses two AI models, DocLayNet and TableFormer, to preserve layout, reading order, and table structure.
