Common Workflow Patterns for AI Agents and When to Use Them

Everyone is talking about AI agents. But here is the part most tutorials skip: it is not just about giving your agent a set of tools. It is about how you structure the way it thinks, decides, and acts. That structure is called an AI agent workflow pattern.

If you build your AI agent without a clear workflow pattern, it will either get stuck in loops, miss steps, or fail in unpredictable ways. On the other hand, when you match the right pattern to the right task, your agent becomes reliable, efficient, and much easier to debug.

In this guide, you will learn the five most common AI agent workflow patterns Sequential, Parallel, Loop, Router, and Orchestrator-Subagent along with real examples and a simple framework to help you decide which pattern to use for your project.

Quick TL;DR Summary

• AI agent workflow patterns are ways to organize how agents plan, decide, and act.
• The main patterns are Sequential, Parallel, Loop, Router, and Orchestrator-Subagent.
• Sequential → Best for step-by-step tasks.
• Parallel → Runs multiple independent tasks at the same time (faster).
• Loop → Repeats tasks and handles retries until success.
• Router → Sends tasks to the correct tool or agent.
• Orchestrator-Subagent → Manages complex tasks using multiple agents.
• Choosing the right pattern makes an AI agent reliable and efficient, instead of fragile.

What Are AI Agent Workflow Patterns?

An AI agent workflow pattern is a repeatable structure that defines how an agent breaks down a task, makes decisions, and executes steps. Think of it like a recipe; the ingredients are your LLM, tools, and memory, but the recipe (workflow pattern) determines how it all comes together.

Without a pattern, an agent is just improvising. With the right pattern, it knows exactly when to call a tool, when to loop back, when to delegate, and when to stop. This is what makes the difference between a toy agent and a production-ready one.

Why Workflow Patterns Matter for AI Agents

Most AI agents fail not because the model is bad, but because the workflow is poorly designed. Choosing the right AI agent workflow pattern upfront saves enormous debugging time later.

Here is what the right pattern gives you:

•        Predictable behavior across different inputs

•        Easier debugging when something goes wrong

•        Better token efficiency agents stop wasting calls

•        Scalability when your task complexity grows

•        Cleaner handoffs between tools, agents, or APIs

Did You Know?

According to research from Stanford and industry practitioners, over 60% of AI agent failures in production are caused by poor workflow design not the underlying model. Picking the right pattern is often more impactful than upgrading your LLM.

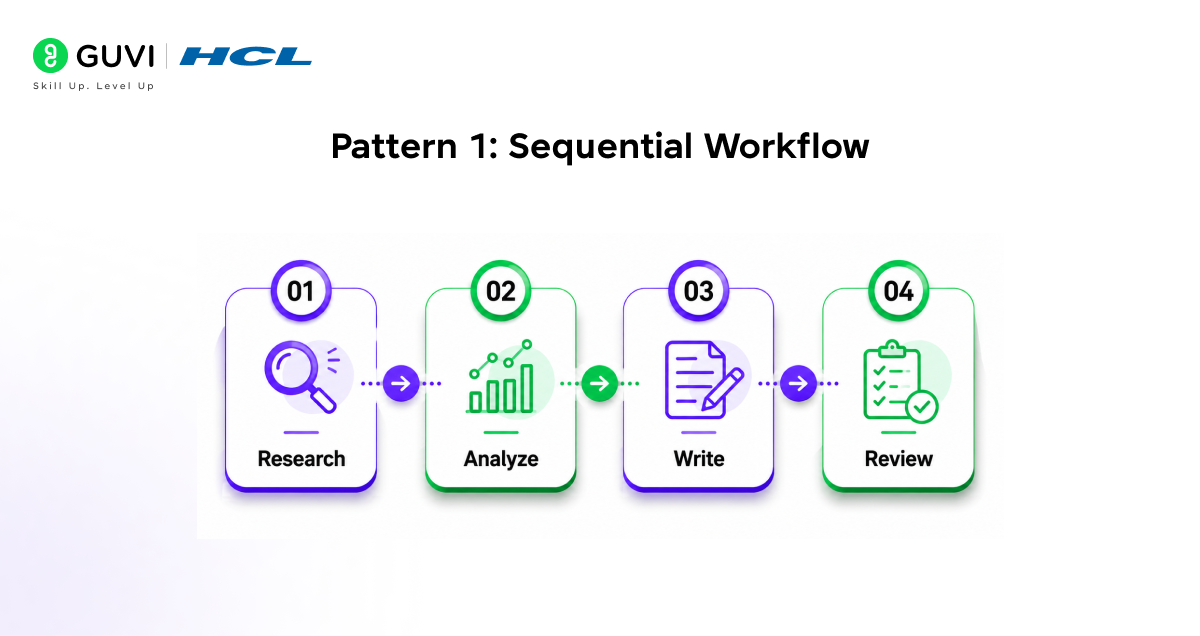

Pattern 1: Sequential Workflow

What It Is

The Sequential workflow is the simplest pattern. The agent completes one step at a time, in a fixed order. Step 2 cannot start until Step 1 is done. It is a straight line from start to finish.

When to Use It

Use Sequential when each step depends on the output of the previous step, and the order cannot change. It is ideal for tasks with a clear beginning, middle, and end.

Real-World Examples

•        Research → Summarize → Draft email → Send

•        Extract data → Clean data → Analyze → Generate report

•        User query → Fetch context → Generate answer → Format response

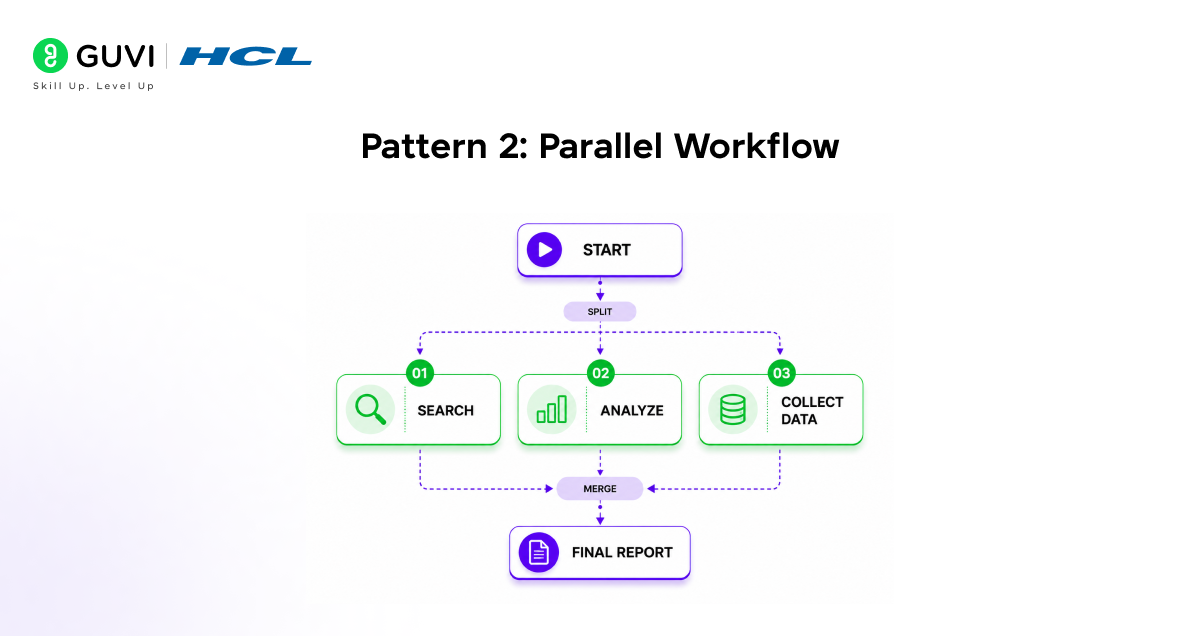

Pattern 2: Parallel Workflow

What It Is

In a Parallel workflow, the agent runs multiple subtasks at the same time. Instead of waiting for one task to finish before starting another, it fans out, executes all branches simultaneously, and then merges the results.

When to Use It

Use Parallel when your subtasks are independent of each other. If Task A does not need Task B’s output to proceed, there is no reason to run them sequentially. Parallelism cuts total execution time significantly.

Real-World Examples

•        Research three competitors at the same time, then compile findings

•        Translate a document into five languages simultaneously

•        Run multiple API calls in parallel to fetch product pricing from different sources

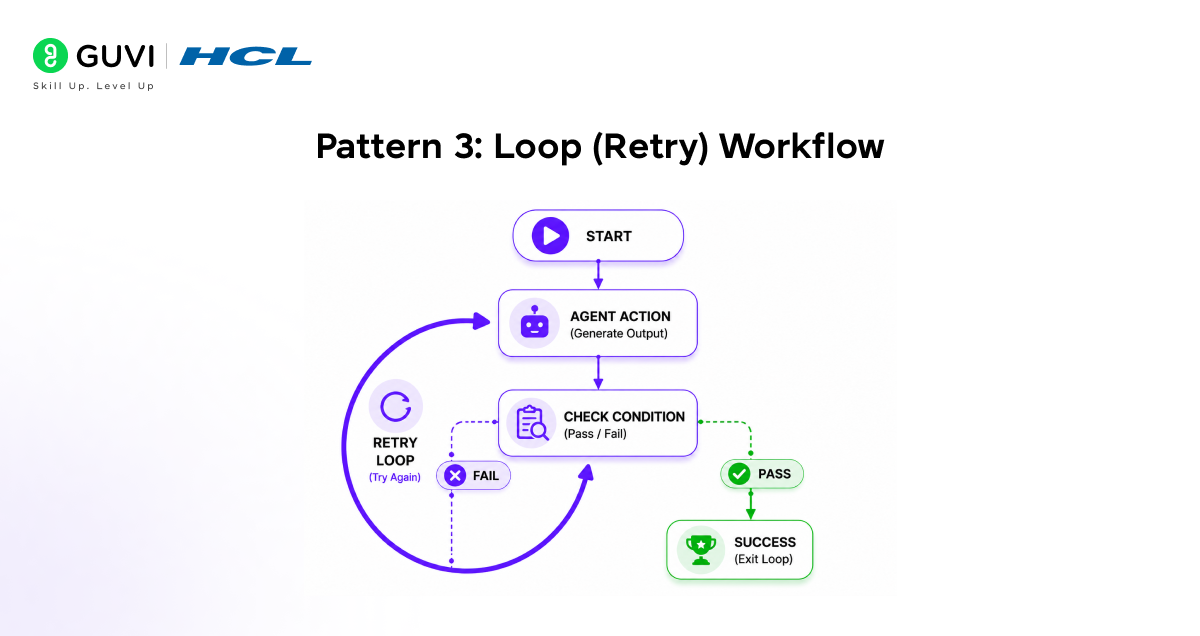

Pattern 3: Loop (Retry) Workflow

What It Is

The Loop pattern allows an agent to repeat a step or set of steps until a condition is met. The agent acts, checks the result, and if the output is not good enough, it tries again with or without adjustments.

When to Use It

Use Loop when quality cannot be guaranteed in a single pass. It is commonly used for validation, self-correction, and data refinement tasks. Always set a maximum iteration limit to avoid infinite loops.

Real-World Examples

•        Generate code → Test it → If test fails, fix and test again → Exit on success

•        Draft a summary → Check word count → If too long, shorten and check again

•        Try API call → If rate-limited, wait and retry up to 5 times

Key Tip

Always build an exit condition into your loop. Without one, your agent will run forever. Most frameworks, like LangGraph and CrewAI, let you set max_iterations to cap this safely.

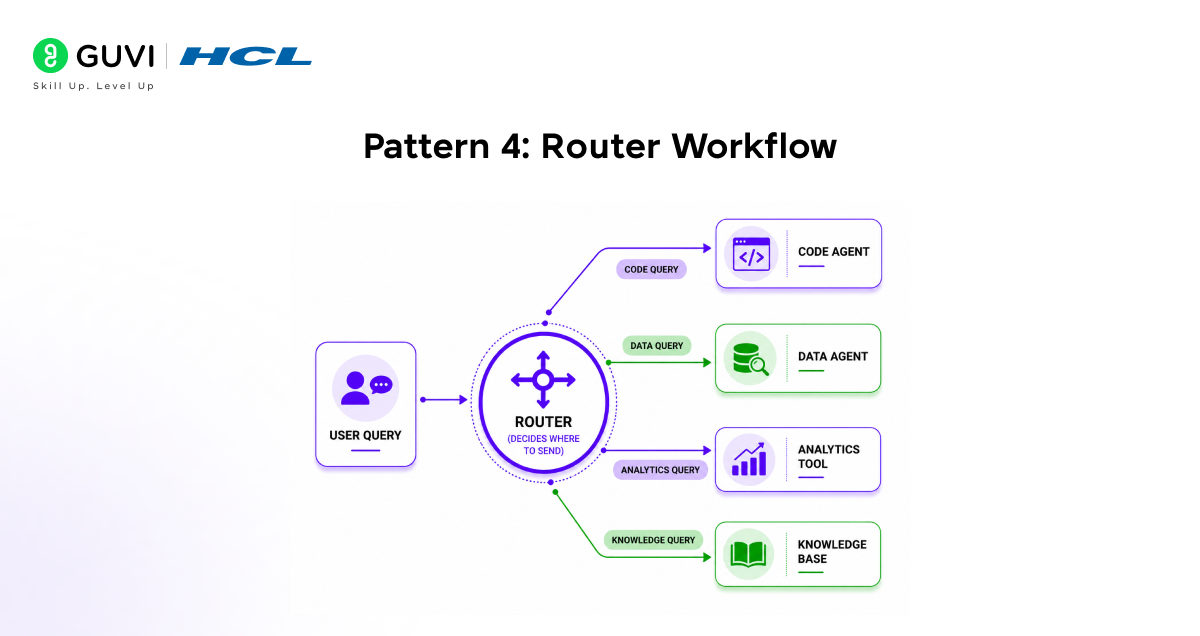

Pattern 4: Router Workflow

What It Is

The Router pattern uses a classifier or decision-making step at the start to direct the input to the most appropriate tool, agent, or workflow branch. The router itself does not complete the task — it just decides who should.

When to Use It

Use Router when your agent needs to handle many different types of queries or tasks that require different capabilities. Rather than one generalist agent trying to do everything, the router sends each request to the specialist that handles it best.

Real-World Examples

•     Customer query → Router → Billing Agent OR Technical Support Agent OR Returns Agent

•        User input → Router → SQL tool (for data queries) OR Knowledge Base (for FAQs)

•        Document type → Router → PDF parser OR CSV analyzer OR Image OCR tool

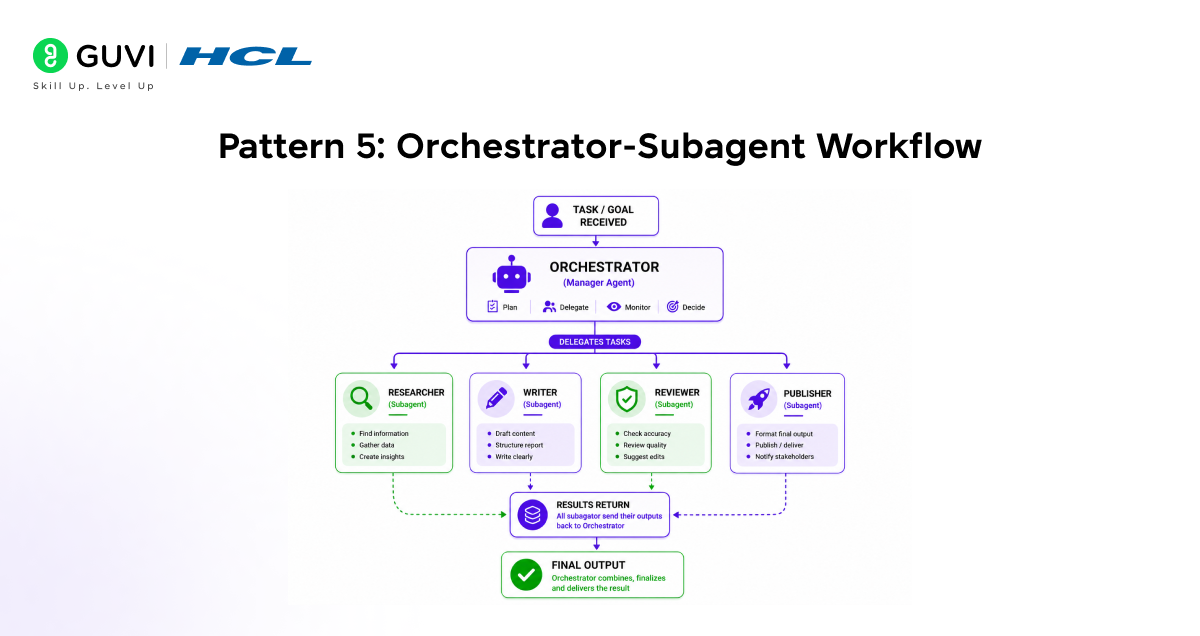

Pattern 5: Orchestrator-Subagent Workflow

 What It Is

The Orchestrator-Subagent pattern is the most powerful and most complex  AI agent workflow pattern. An Orchestrator agent manages the overall task, breaks it into subtasks, and delegates each subtask to specialized Subagents. It monitors their outputs and makes decisions about next steps.

When to Use It

Use this pattern for long-horizon, multi-step tasks that require different types of expertise. If your task would take a senior project manager to coordinate, it probably needs an Orchestrator-Subagent pattern.

Real-World Examples

•     Orchestrator receives: ‘Write and publish a research report’ → Assigns to Researcher, Writer, Editor, Publisher Subagents

• Orchestrator manages a software sprint → Delegates to Coder, Tester, and Documentation Subagents

•  Orchestrator handles a travel booking → Coordinates Flight Agent, Hotel Agent, Calendar Agent

Did You Know?

Frameworks like CrewAI, AutoGen, and LangGraph all support the Orchestrator-Subagent pattern natively. Microsoft’s AutoGen, for example, was specifically designed around multi-agent conversations where a manager agent coordinates worker agents on complex tasks.

Tips for Designing AI Agent Workflows

Start Simple, Then Add Complexity

Always start with a Sequential workflow. Once you know the happy path works, add parallelism, routing, or looping where needed. Jumping straight to Orchestrator-Subagent for a simple task is over-engineering.

Always Define Exit Conditions for Loops

Every Loop pattern must have a maximum iteration count. Set this early. An uncapped loop can burn through your API budget in minutes and still not produce a useful result.

Log Every Step

Debugging a multi-agent workflow is hard. Add logging at every decision point — what the agent received, what it decided, and what it output. This is non-negotiable for production agents.

Match Pattern Complexity to Task Complexity

A simple FAQ chatbot does not need an Orchestrator-Subagent architecture. A simple Router pattern is enough. Over-engineering adds latency, cost, and failure points.

Use Frameworks Built for This

•        LangGraph great for stateful, graph-based workflows

•        CrewAI  excellent for Orchestrator-Subagent patterns with role-based agents

•        AutoGen  designed for multi-agent conversations and coordination

•        Semantic Kernel strong for enterprise-grade agent workflows with .NET or Python

If you’re serious about mastering AI-powered coding tools and want to apply them in real-world scenarios, don’t miss the chance to enroll in HCL GUVI’s Intel & IITM Pravartak Certified Artificial Intelligence & Machine Learning Course, co-designed by Intel. It covers Python, Machine Learning, Deep Learning, Generative AI, Agentic AI, and MLOps through live online classes, 20+ industry-grade projects, and 1:1 doubt sessions, with placement support from 1000+ hiring partners, helping you build intelligent systems and work efficiently with modern AI development tools

Conclusion

Understanding AI agent workflow patterns is not optional if you want to build agents that actually work in production. Whether you are building a simple automation or a full multi-agent system, the pattern you choose shapes everything from reliability to cost to debugging speed.

Start with Sequential for clarity, add Parallel for speed, use Loop for quality control, apply Router for flexibility, and reach for Orchestrator-Subagent when the task demands serious coordination. Match the pattern to the problem, not the other way around.

As AI agents become central to how software is built and businesses operate, knowing your AI agent workflow patterns will be one of the most valuable skills you can develop in 2026 and beyond.

 Frequently Asked Questions (FAQs)

1. What is an AI agent workflow pattern?

An AI agent workflow pattern is a reusable structure that defines how an AI agent organizes its decision-making, task execution, and tool usage. Common patterns include Sequential, Parallel, Loop, Router, and Orchestrator-Subagent.

2. Which AI agent workflow pattern is best for beginners?

The Sequential pattern is the best starting point. It is simple, predictable, and easy to debug. Once you are comfortable with Sequential, you can layer in more complex patterns like Parallel or Loop.

3. Can I combine multiple AI agent workflow patterns?

Yes, and most production agents do. A real-world agent might use a Router to classify the task, then run Parallel subtasks, and use a Loop for self-correction all within the same workflow.

4. What is the difference between Router and Orchestrator-Subagent patterns?

A Router directs a single input to the best-fit tool or agent. An Orchestrator-Subagent manages an entire multi-step project by delegating tasks to specialized subagents and coordinating their results. Orchestrator is far more complex and powerful.

5. How do I prevent an AI agent from looping forever?

Always set a max_iterations parameter in your Loop workflow. Most agent frameworks like LangGraph and CrewAI support this natively. A typical safe limit is 3–5 iterations for most tasks.
