How Does an Electric Vehicle Work? A Complete Guide

What if the car you drive never needed petrol, oil changes, or even an engine in the traditional sense?
That is exactly what makes electric vehicles so revolutionary. Instead of relying on fuel combustion, electric vehicles run on stored electrical energy, converting it directly into motion through advanced battery systems and electric motors. This fundamental shift not only changes how cars are powered but also improves efficiency, reduces emissions, and introduces a smarter, cleaner way to travel.

Curious to know what powers this transformation and how it all works? Read the full blog to explore the technology behind electric vehicles.

Quick Answer:

Electric vehicles run on high-voltage battery packs, power electronics, and electric motors instead of fuel combustion. Energy flows from the grid to lithium-ion batteries, then through inverters to generate torque. With regenerative braking, embedded software, and fast-charging systems, EVs deliver higher efficiency, lower maintenance, zero tailpipe emissions, and smarter, software-driven mobility.

What Is an EV?

An EV (Electric Vehicle) is a vehicle powered by electricity instead of petrol or diesel. It uses a rechargeable battery pack to store energy and an electric motor to convert that energy into mechanical motion. Unlike internal combustion engine vehicles, EVs do not burn fuel. From an EV engineer’s perspective, they operate through controlled electrical energy conversion systems that optimize power delivery and eliminate tailpipe emissions by removing combustion entirely from the propulsion process.

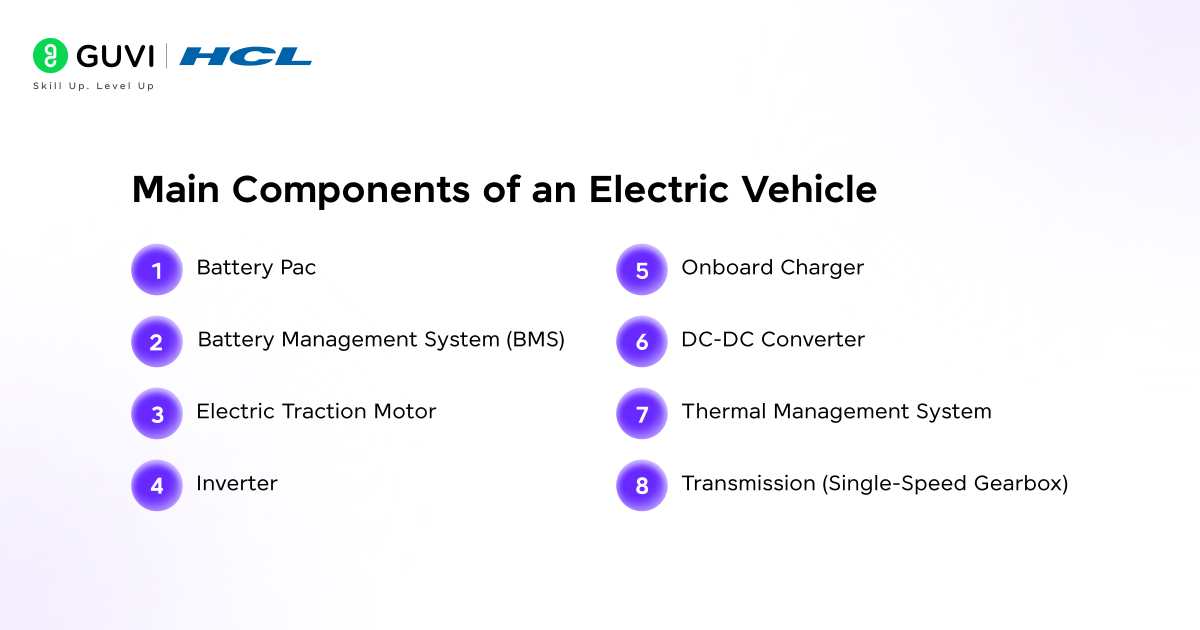

Main Components of an Electric Vehicle

• Battery Pack: The central energy storage system of the vehicle. It consists of multiple lithium-ion cells arranged in modules and managed through a battery management system. The battery determines range, voltage architecture, and overall performance capacity.
• Battery Management System (BMS): A control unit that monitors cell voltage, temperature, and state of charge. It prevents overcharging, deep discharge, and thermal instability while maintaining cell balance for long-term durability.
• Electric Traction Motor: Converts electrical energy into mechanical torque using electromagnetic principles. Most EVs use permanent magnet synchronous motors or induction motors due to their high efficiency and torque output.
• Inverter: Converts direct current from the battery into alternating current required by the motor. It regulates motor speed and torque using controlled switching techniques such as pulse-width modulation.
• Onboard Charger: Converts alternating current from the grid into direct current suitable for battery charging during AC charging sessions.
• DC-DC Converter: Reduces high-voltage battery output to lower voltage levels required for auxiliary systems such as lighting, infotainment, and control electronics.
• Thermal Management System: Maintains optimal operating temperatures for the battery, motor, and power electronics. It typically uses liquid cooling circuits to preserve efficiency and battery lifespan.
• Transmission System: Usually a single-speed reduction gearbox that transfers motor torque to the wheels while minimizing mechanical losses.
• Charging Port: The interface between the vehicle and external charging infrastructure. It supports AC charging and, in some models, high-power DC fast charging.

Also, Read: How Do You Choose the Right Electric Vehicle Course & Certification in 2026? The Only Guide You Need

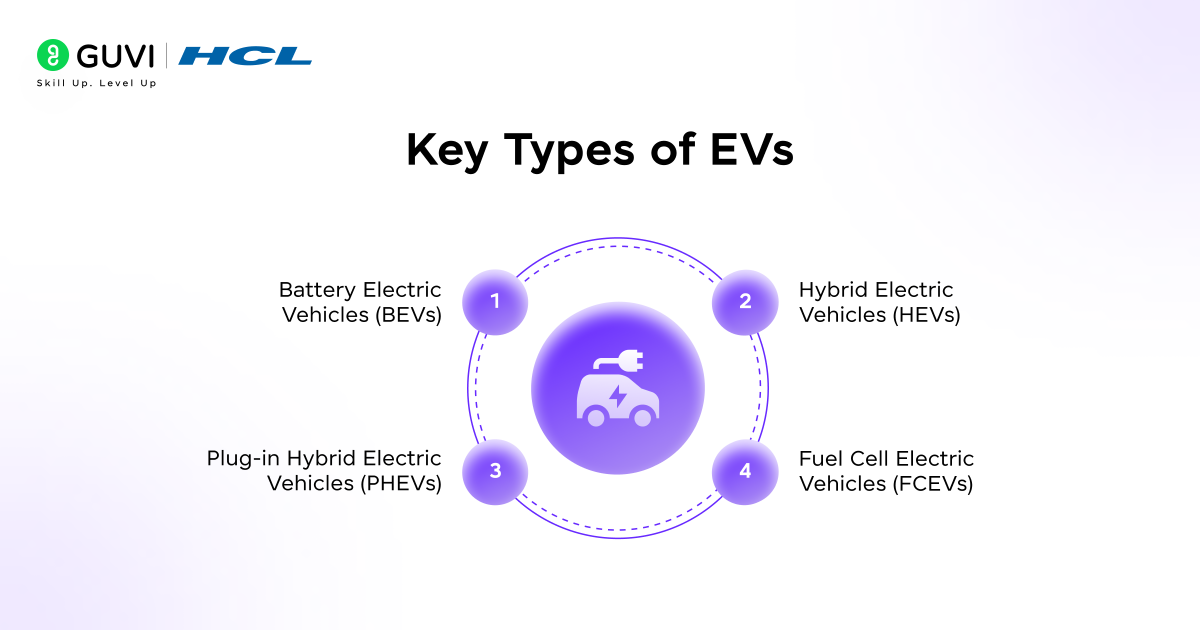

Key Types of EVs

• Battery Electric Vehicles (BEVs): Fully electric vehicles that operate only on battery power. They do not contain a petrol or diesel engine and must be charged through external power sources. Example use case includes urban commuting and long-range electric driving depending on battery capacity.
• Hybrid Electric Vehicles (HEVs): Vehicles that combine an internal combustion engine with an electric motor. The battery is charged through regenerative braking and the engine itself. They do not require external charging.
• Plug-in Hybrid Electric Vehicles (PHEVs): Similar to hybrids but equipped with larger batteries that can be charged externally. They can operate in pure electric mode for short distances before switching to engine-assisted driving.
• Fuel Cell Electric Vehicles (FCEVs): Vehicles that generate electricity using hydrogen through a fuel cell system. The chemical reaction between hydrogen and oxygen produces electricity to power the motor, with water vapor as the only emission.

Top Examples of Electric Vehicles

• Tesla Model 3: A globally popular electric sedan known for its long driving range, advanced battery efficiency, and strong acceleration performance. It supports fast charging and over-the-air software updates.
• Tata Nexon EV: One of India’s highest-selling electric SUVs, recognized for its practical range, competitive pricing, and suitability for urban and intercity driving.
• MG ZS EV: A premium electric SUV featuring fast-charging capability, modern infotainment systems, and strong safety ratings.
• Hyundai Kona Electric: Known for its high energy efficiency and long single-charge range, making it suitable for daily commuting and highway travel.
• BMW i4: A luxury electric sedan combining premium comfort with high-performance electric drivetrain technology.

Step-by-Step: How an Electric Vehicle Works

Step 1: Grid Energy Intake and Onboard Conversion

The process begins when the vehicle connects to an external power source through an AC or DC charging interface.

• AC Charging: Alternating current from the grid enters the vehicle and is converted into direct current by the onboard charger.
• DC Fast Charging: Direct current flows directly to the battery system, reducing conversion stages and improving charging speed.
• Power Conditioning Circuits regulate voltage, stabilize current, and maintain grid compliance.
• Charging efficiency typically ranges between 85 to 95 percent depending on hardware quality and ambient temperature.

Thermal regulation systems operate during charging to maintain optimal battery temperature, preserving cell chemistry stability and extending service life.

Step 2: Battery Energy Storage and Management

Once electrical energy enters the vehicle, it is stored in high-capacity lithium-ion battery packs composed of thousands of interconnected cells.

Key technical elements include:

• Cell Chemistry Selection such as NMC, LFP, or NCA depending on energy density and lifecycle requirements.
• Battery Management System that monitors voltage, current flow, and temperature in real time.
• Cell Balancing Algorithms that equalize charge levels across modules to prevent uneven degradation.
• Liquid Cooling Systems that maintain safe operating conditions during discharge and charging cycles.

Most modern EV platforms operate at 350V to 800V architectures, reducing current draw for equivalent power output and lowering resistive losses.

Step 3: Power Electronics and Inverter Control

When the driver presses the accelerator, the battery management system authorizes energy discharge to the inverter.

The inverter performs critical electrical conversion functions:

• Converts stored DC power into three-phase AC power.
• Uses pulse-width modulation to control voltage frequency and amplitude.
• Regulates torque delivery based on throttle position and traction inputs.
• Employs advanced semiconductor materials such as silicon carbide to reduce switching losses and improve efficiency.

This stage determines how precisely electrical energy translates into mechanical output.

Step 4: Electric Motor Torque Generation

The inverter supplies controlled AC power to the traction motor. Most electric vehicles use permanent magnet synchronous motors or induction motors.

Motor operation follows electromagnetic principles:

• Rotating magnetic fields in the stator induce rotor movement.
• Rotor motion produces mechanical torque.
• Maximum torque is available from zero revolutions per minute.

Electric motors commonly achieve 85 to 95 percent efficiency, substantially higher than combustion engines.

Step 5: Transmission and Wheel Propulsion

Mechanical output from the motor transfers through a single-speed reduction gearbox.

• High motor RPM is reduced to appropriate wheel speed.
• Torque flows through a differential system to the drive wheels.
• Mechanical losses remain low due to fewer moving components compared to multi-speed transmissions.

The result is smooth acceleration without gear shifts or torque interruption.

Step 6: Regenerative Braking and Energy Recovery

During deceleration, the traction motor reverses function and operates as a generator.

• Kinetic energy from wheel rotation converts into electrical energy.
• Generated current flows back to the battery pack.
• The battery management system regulates current flow to prevent overcharging.

Energy recovery rates range between 10 to 25 percent depending on driving patterns, with urban traffic producing higher recovery potential.

Step 7: Auxiliary Power Distribution

Electric vehicles power secondary systems through DC-DC converters that step down high-voltage battery output to lower-voltage systems.

Critical auxiliary systems include:

• Climate control compressors
• Steering and braking assist modules
• Infotainment systems
• Thermal management pumps

Energy optimization software prioritizes essential loads and maintains system stability under varying demand conditions.

Step 8: Real-Time Software Monitoring and Optimization

Embedded control software continuously supervises system performance.

• State of charge estimation models calculate remaining range.
• Predictive thermal algorithms adjust cooling or heating loads.
• Over-the-air software updates refine inverter calibration and battery control logic.

This software layer maintains operational reliability, performance consistency, and long-term durability across the vehicle lifecycle.

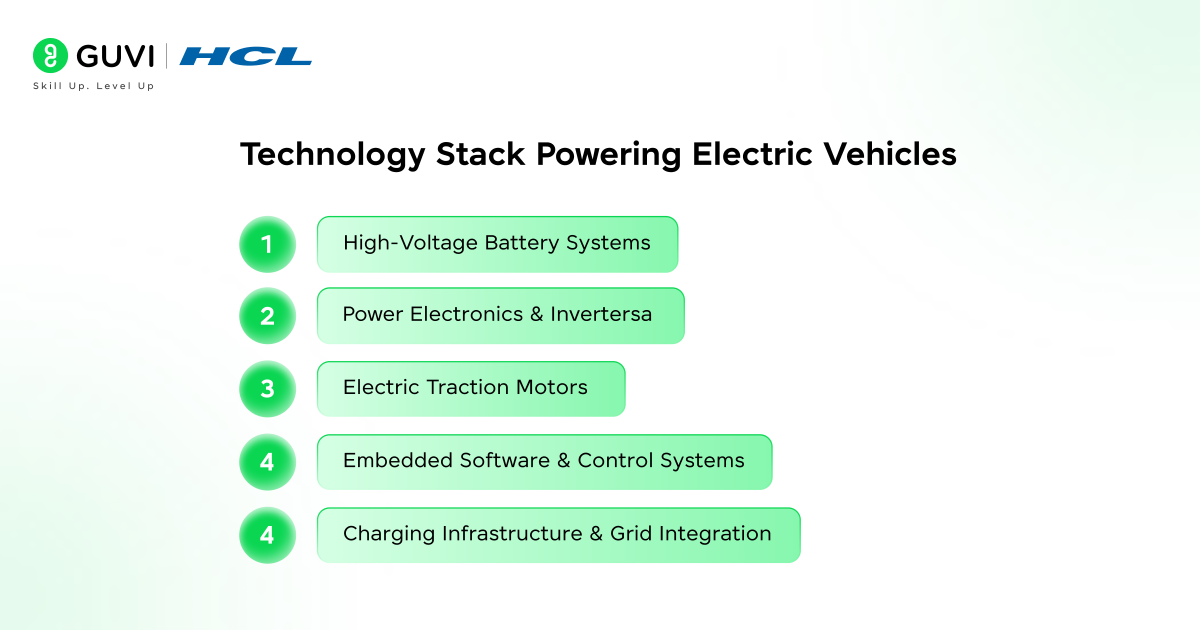

Technology Stack Powering Electric Vehicles

1. High-Voltage Battery Architecture and Cell Chemistry

The battery system is the primary energy reservoir and performance determinant of an EV.

• Cell Chemistries:
  • NMC (Nickel Manganese Cobalt) for high energy density
  • LFP (Lithium Iron Phosphate) for thermal stability and longer cycle life
  • NCA (Nickel Cobalt Aluminum) for high specific energy applications
• Voltage Platforms:
  • 400V systems are standard across mass-market EVs
  • 800V systems reduce current draw, lower resistive losses, and support ultra-fast charging
• Battery Pack Design:
  • Module-to-pack or cell-to-pack architectures improve structural integration
  • Structural battery packs enhance chassis rigidity
• Thermal Regulation:
  • Liquid cooling loops maintain optimal operating temperature between 20°C to 40°C

Energy density directly affects range, while charge cycle durability determines long-term cost efficiency.

2. Power Electronics and Semiconductor Systems

Power electronics convert stored electrical energy into controlled mechanical output.

• Inverters convert DC battery power into three-phase AC for motor control
• Silicon Carbide MOSFETs reduce switching losses and improve thermal efficiency
• Pulse Width Modulation Controllers regulate torque and motor speed
• Onboard Chargers manage AC to DC conversion during charging sessions

Advanced semiconductor materials improve efficiency under high voltage and high-frequency switching conditions, directly affecting overall drivetrain performance.

3. Electric Traction Motor Technology

The motor defines torque response, efficiency, and performance characteristics.

• Permanent Magnet Synchronous Motors provide high power density and strong torque at low RPM
• Induction Motors eliminate reliance on rare-earth magnets and offer cost flexibility
• Hairpin Winding Designs increase copper fill factor, improving power output
• Axial Flux Motors reduce size and weight while increasing torque density

Electric motors achieve 85 to 95 percent efficiency across broad operating ranges, exceeding combustion engine efficiency limits.

4. Embedded Software and Vehicle Control Systems

Modern EVs rely heavily on software-driven control systems.

• Battery Management Algorithms calculate state of charge, state of health, and remaining useful life
• Motor Control Firmware regulates torque curves and traction control
• Predictive Energy Modeling estimates real-world range using driving history and load conditions
• Over-the-Air Update Frameworks deploy firmware enhancements remotely

The shift from mechanical complexity to software-defined performance allows continuous refinement of efficiency and drivability.

5. Charging Infrastructure and Energy Interface Systems

Charging technology determines practical usability and adoption scalability.

• Level 1 and Level 2 AC Charging for residential and workplace charging
• DC Fast Charging Systems delivering 50 kW to 350 kW power output
• Combined Charging System and CHAdeMO Standards for interoperability
• Vehicle-to-Grid Integration enabling bidirectional power transfer

High-voltage architectures paired with fast-charging networks reduce downtime and support broader EV adoption across urban and highway environments.

How EV Charging Works?

Electric vehicle charging is a controlled electrical process that transfers energy from the grid to the vehicle’s high-voltage battery system. The efficiency, speed, and safety of charging depend on voltage architecture, charger type, and battery management controls.

Charging Levels and Power Flow

AC Charging

• Power from the grid enters the vehicle as alternating current.
• The onboard charger converts AC into DC suitable for battery storage.
• Typical power range: 3.3 kW to 22 kW.
• Charging duration: 4 to 10 hours depending on battery size.

DC Fast Charging

• Direct current flows directly into the battery system.
• Bypasses the onboard charger to reduce conversion stages.
• Power range: 50 kW to 350 kW.
• Can replenish 10 to 80 percent charge in 20 to 40 minutes in compatible 800V systems.

Charging Control and Safety Systems

• The Battery Management System regulates voltage, current, and temperature.
• Charging slows near higher state of charge levels to protect cell integrity.
• Thermal control loops activate during high-speed charging to prevent overheating.
• Communication protocols between charger and vehicle manage current delivery limits.

Charging efficiency typically ranges between 85 and 95 percent depending on system design and ambient conditions.

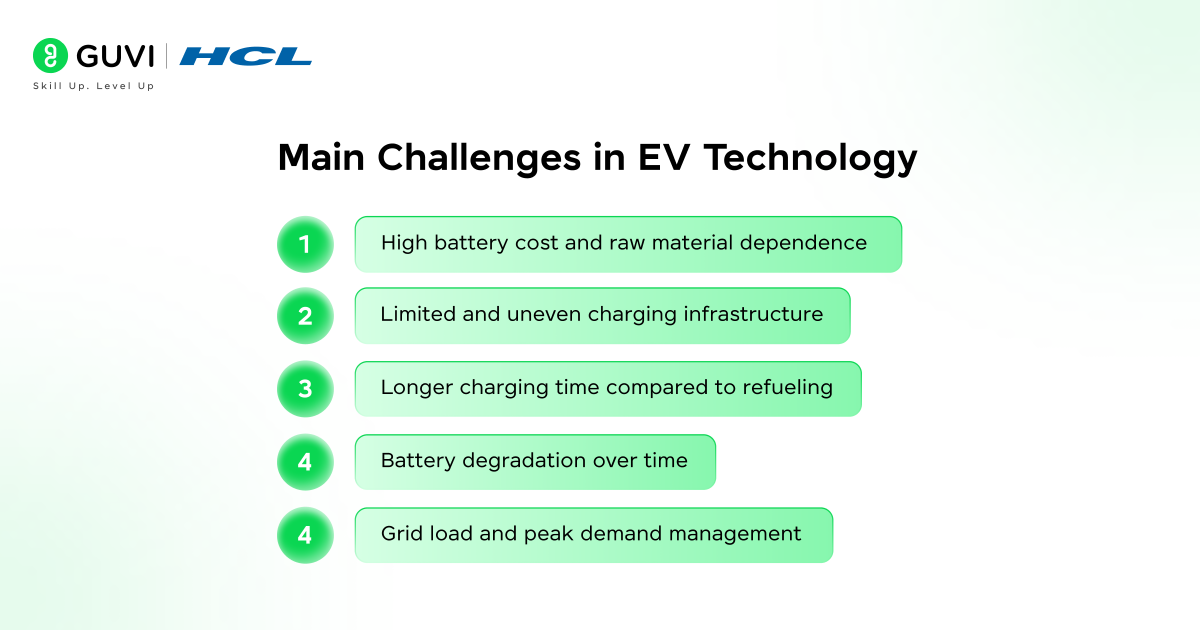

Challenges in EV Technology

Despite strong engineering advancements, electric vehicles face structural and technological challenges. Here are the prominent challenges:

• Battery Cost and Raw Material Dependence
  • Lithium, nickel, and cobalt supply chains remain geographically concentrated, creating exposure to geopolitical and pricing volatility.
  • Battery packs account for approximately 30 to 40 percent of total vehicle manufacturing cost.
  • Recycling and second-life battery infrastructure is still scaling to meet projected EV adoption demand.
• Charging Infrastructure Gaps
  • Rural and highway fast-charging networks remain uneven across many regions.
  • High-power DC charging stations require substantial grid upgrades and capital investment.
  • Urban residential charging access is limited in high-density housing environments without dedicated parking.
• Charging Time Compared to Refueling
  • Even high-power fast charging requires longer downtime compared to conventional fuel refilling.
  • High utilization charging hubs require load balancing systems to prevent localized grid stress.
• Battery Degradation Over Time
  • Elevated operating temperatures and repeated high-rate fast charging accelerate electrochemical wear.
  • Battery capacity gradually declines across charge cycles, reducing available range over time.
• Grid Load Management
  • Widespread EV adoption increases peak electricity demand, especially during evening charging windows.
  • Smart charging schedules, distributed energy storage, and demand-response systems are required to maintain grid stability.

Also, Explore: Electric Vehicle Interview Questions and Answers Most Candidates Fail to Prepare For

Best Practices for EV Ownership and Operation

1. Charging Optimization

• Maintain charge between 20 and 80 percent for daily use.
• Limit frequent high-power fast charging unless necessary.
• Charge during off-peak grid hours where available.

2. Thermal Awareness

• Park in shaded or temperature-controlled environments when possible.
• Allow battery cooling cycles to complete after fast charging.

3. Driving Efficiency

• Use regenerative braking strategically in urban conditions.
• Avoid aggressive acceleration patterns that increase discharge rates.
• Monitor real-time efficiency data from the vehicle dashboard.

4. Software Maintenance

• Install firmware updates promptly to maintain performance calibration.
• Monitor battery health metrics through onboard diagnostics.

Curious about how electric vehicles actually work beyond the basics? Build deep expertise in battery technology, power electronics, motor control systems, and EV architecture with HCL GUVI’s Advanced Electric Vehicle Technology Course by IIT Delhi. Gain industry-relevant skills and position yourself for high-growth roles in the evolving EV ecosystem.

EV vs Petrol Car: How the Working Differs

Conclusion

Electric vehicles run on an integrated electrical propulsion system built around battery science, power electronics, and embedded software. Charging systems manage energy flow precisely, while motor controllers convert stored electricity into efficient mechanical output.

While infrastructure gaps, material sourcing, and charging time remain technical challenges, progress in semiconductors, battery chemistry, and grid integration continues to improve performance and scalability. For professionals considering an EV career, this shift reflects a move toward electrically optimized transport systems driven by efficiency, software control, and advanced energy engineering.

FAQs

Do EVs need oil changes?

No. EVs do not have a combustion engine, so there is no need for engine oil changes.

How long does an EV battery last?

EV batteries typically last 8 to 15 years, depending on usage and maintenance.

Are EVs cheaper to run?

Yes. Electricity is generally much cheaper than petrol, resulting in lower cost per kilometer.

Can EVs be charged at home?

Yes. Most EV owners install a home charging setup for convenient overnight charging.

Are EVs eco-friendly?

Yes. They produce zero tailpipe emissions and operate more efficiently than conventional vehicles.
